Brand: Iscar

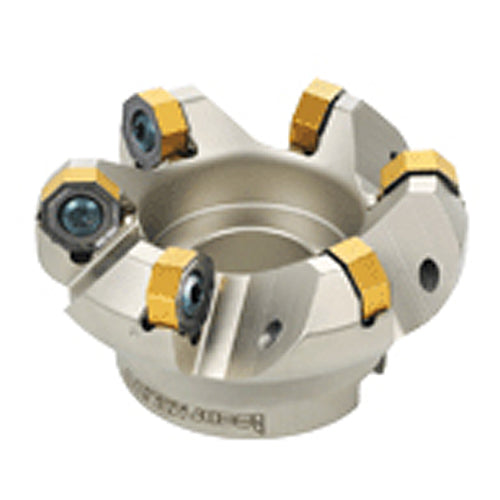

Iscar EH3104645 SOF458/16-D3.0-07-1.00R
SKU: FTS-EH3104645
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3104645 SOF458/16-D3.0-07-1.00RFull Description
| Cutting Diameter (DC/DCX) | 3.315" | Master Insert Identification (MIID) | ONHU 050500-PL |
| Cutting Diameter (DC) | 3" | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.315" | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.114" | Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1" | Measurement Type | Inch |
| Overall Length (OAL) | 1.301" | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.21" | Tool Type | 45° Facemills |
| Arbor Style | B |
Family Description
Multifunction Face Mills for Octagonal, Square and Round Insert Shapes with Various Entry Angles.
1- with ONMU 0505... insert 2- with S845 SNMU 1305... insert 3- with RXMT 1607N insert 4- with OXMT 0507R08-FF insert 5- with OXMT 050705-R-HP insert Use only Torx Plus keys For adaptation, click on "More Info"
