Brand: Iscar

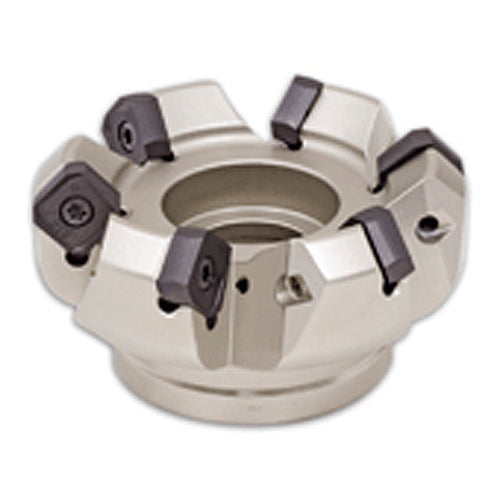

Iscar EH3104581 S845 F45SX D3.0-6-1.0-R16
SKU: FTS-EH3104581
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3181005 S845 F45SX D3.0-6-1.0-R16Full Description
| Cutting Diameter (DC/DCX) | 3.58" | Master Insert Identification (MIID) | S845 SXMU 1606ADTR |
| Cutting Diameter (DC) | 3" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 3.58" | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.276" | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1" | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4" | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.755" | Tool Type | 45° Facemills |
| Arbor Style | B |
Family Description
45° face mills, featuring very rigid clamping, carrying inserts with 8 helical, right-hand cutting edges, providing a very economical solution (HELIDO845).
For adaptation, click on "More Info". Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters.
