Brand: Iscar

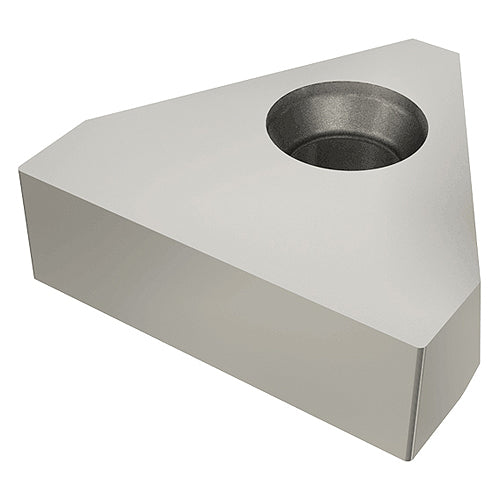

Iscar EH286402781 XNUW 2406-05 IC28
SKU: FTS-EH286402781
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH286402781 XNUW 2406-05 IC28Full Description
| Cutting Width (CW) | 0.965" | Shape | Special |
| Insert Thickness (S) | 1/4" | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 5/8" | Application | | Ext. Grooving | Int. Grooving | Int. Grooving (side limit) | |
| Insert Length (INSL) | 0.984" | Applicable Material | | Non Ferrous Metals | |
| Fixing Hole Diameter (D1) | 0.217" | Measurement Type | Inch |
| Coating | Uncoated | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC28 | Body Material | Carbide |
Family Description
Blank inserts for wide profile grooving.
