Brand: Iscar

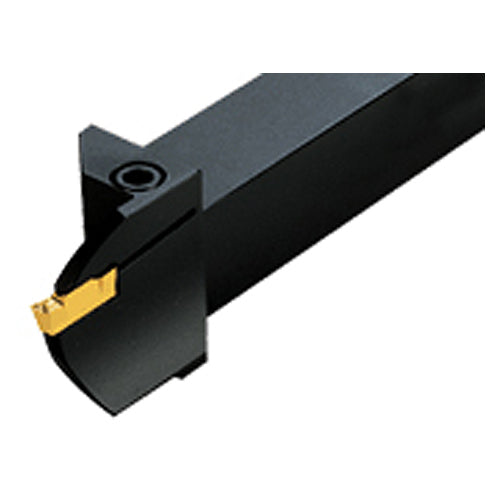

Iscar EH2500097 HFHR 25.4-60-3T22
SKU: FTS-EH2500097
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH2500097 HFHR 25.4-60-3T22Full Description
| Shank Width (B) | 1" | Overall Length (OAL) | 6" |
| Shank Height (H) | 1" | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 0.87" | Head Length (LH) | 1.57" |
| Cutting Width (CW) | 0.118" | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.96" | Functional Width (WF) | 1.02" |
| Axial Groove Outside Diameter Minimum (DAXN) | 2.36" | Measurement Type | Inch |
Family Description
Integral toolholders for external facing
For insert clamping instructions, click on "More Info"
