Brand: Iscar

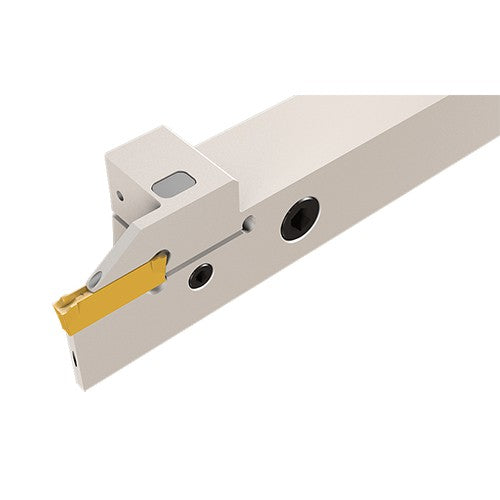

Iscar EH2303006 DGTR 19B-3D40-JHP-SL
SKU: FTS-EH2303006
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
EH2303006 DGTR 19B-3D40-JHP-SLFull Description
| Shank Height (H) | 3/4" | Cutting Position | External |
| Shank Width (B) | 3/4" | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.094" | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.118" | Body Material | Steel |
| Cutting Width Maximum (CWX) | 1/8" | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 5.51" | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 1.4" | Measurement Type | Inch |
| Overall Height (OAH) | 1.1" |
Family Description
Parting and grooving tools with high-pressure coolant and a user friendly side clamping mechanism for Swiss-type and automatic machines.
DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on "More Info"
