Brand: Iscar

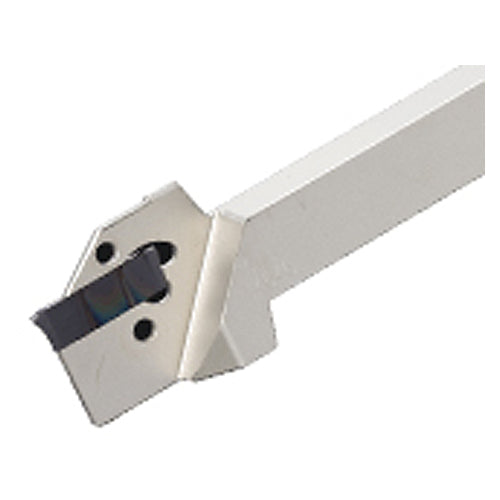

Iscar EH2301294 DGTL 12.7-3

SKU: FTS-EH2301294
MPN: 2301294

$161.72
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

EH2301294 DGTL 12.7-3

Full Description

Cutting Width Minimum (CWN)	0.118"	Coolant Supply Property (CSP)	External
Cutting Width Maximum (CWX)	1/8"	Application	\| Ext. Grooving \| Parting \|
Shank Height (H)	1/2"	Body Material	Steel
Head Length (LH)	1.1"	Tool Type	Parting & Grooving Tools
Overall Length (OAL)	" 4-1/2"	Measurement Type	Inch

Family Description

Integral shank parting and grooving tools

Insert limit is Tmax=.709" . If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on "More Info"
