EH 22630.0249

Brand: HALDER

EH 22630.0249

SKU: EH-22630.0249
MPN: 22630.0249

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

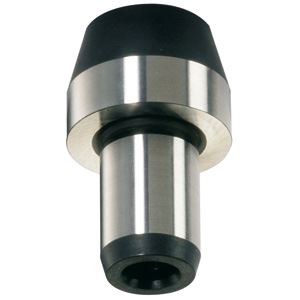

Locating Pins, with bore hole similar to DIN 6321/locating pin, flattened, with bore hole | d1=16 mm / l1=22 mm | 22630.0249
Halder 22630.0249 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Cylindric locating pins for locating workpieces in toleranced holes and also to be used as stops and feet.

Flattened locating pins used to overcome differences in tolerances, between holes or to position an element in one direction only.

Apart from size 6 additional safety by fastening possibilities from up and down (can also be used for dismounting). The outer dimensions are similar to DINá6321.

Material

  • Case-hardened steel, case-hardened, blackened and ground
