Brand: HALDER

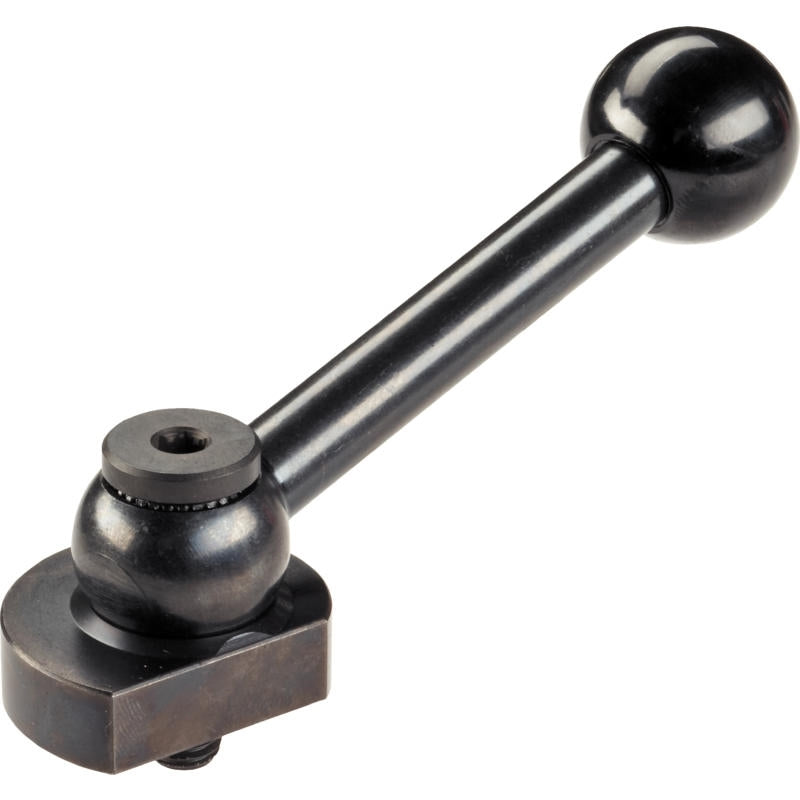

ECCENTRIC CLAMPS - 23410.0050
SKU: EH-23410.0050
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Eccentric Clamps/with clamping lever | Steel | 23410.0050Halder 23410.0050 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Eccentric clamps enable fast and safe clamping and releasing with a relatively large adjustment range and high tensioning force. The eccentric plain washer enables a stepless radial clamping effect in any clamping position. Furthermore, the eccentric clamp is self-locking. The clamp can be used as a stepless stop by removing the thrust washer.
Material
Gear lever handle
- Steel, ground, blackened
Body
- Steel, case-hardened, blackened
Screw
- Steel, hardened, blackened
Ball knob
- Thermosetting plastic PF 31, black, DIN 319
Assembly
Fix with screw bolt M 10 (SW 6). Ensure a tightening torque of max. 40 Nm.
Operation
The screw bolt and the washer are adjustable. Once screwed in, the clamping catch can easily be turned to the desired position. For Art. No. 23410.0050 /á.0051, the serration helps to put the clamping lever to the preferred position.
Notes
Left turn type can be supplied on request.
