Brand: Ultra-Dex

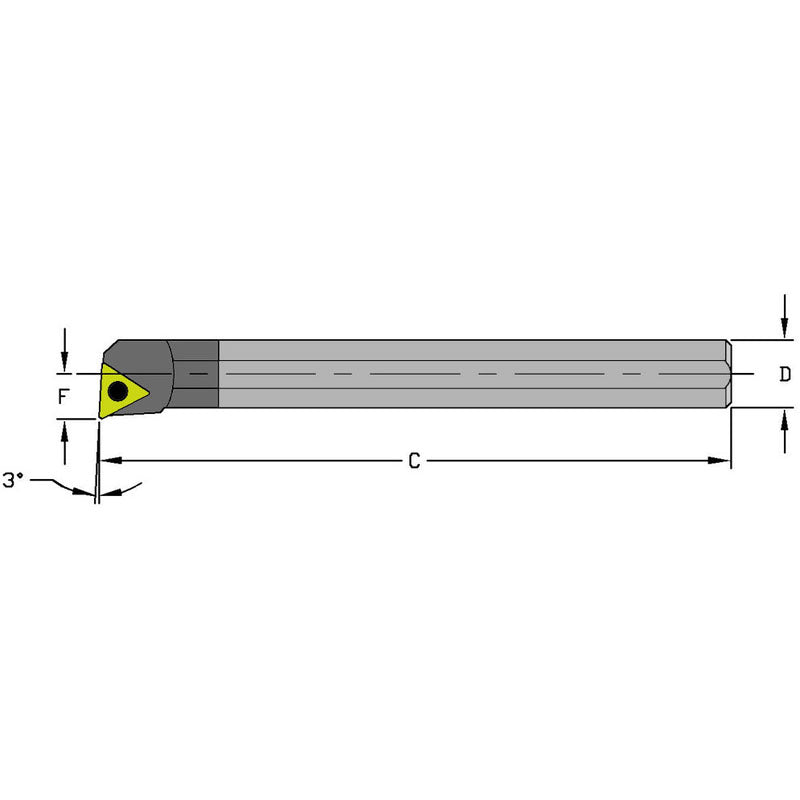

Ultra-Dex FG550621 Indexable Coolant-Thru Boring Bar-E16T-STUCR3 1" SH
SKU: FTS-FG550621
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 920-000-405 Indexable Coolant-Thru Boring Bar-E16T-STUCR3 1" SHFull Description
| Connection Diameter Machine Side (DCONMS) | 1" | Minimum Bore Diameter (DMIN) | 1.185" |
| Functional Length (LF) | 12" | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 12" | Coolant Supply Property (CSP) | Coolant Thru |
| Reduced Body Diameter Length (LDRED) | 1.185" | Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .625" | Style | STUCR |
| Master Insert Identification (MIID) | TCMT 32.51 | Measurement Type | Inch |
• Triangle insert bar • Coolant through
