Brand: Ultra-Dex

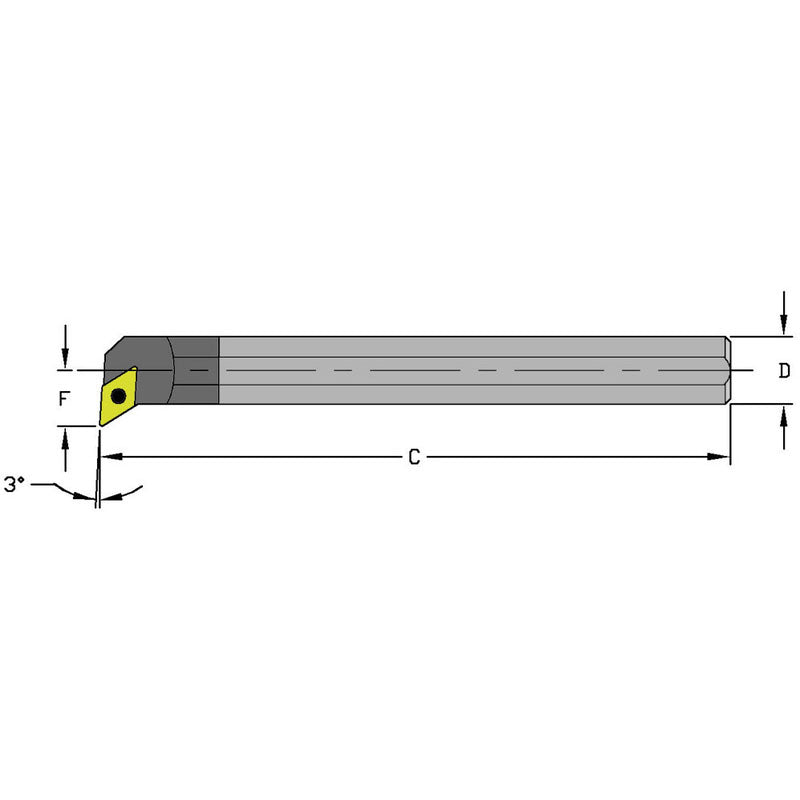

Ultra-Dex FG551215 E12Q SDUPR3 Solid Carbide Boring Bar w/Coolant
SKU: FTS-FG551215
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 920-000-313 E12Q SDUPR3 Solid Carbide Boring Bar w/CoolantFull Description
| Connection Diameter Machine Side (DCONMS) | 3/4" | Minimum Bore Diameter (DMIN) | 1.05" |
| Functional Length (LF) | 7" | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 7" | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Width (WF) | .625" | Tool Type | Indexable Coolant Thru Boring Bar |
| Master Insert Identification (MIID) | DCMT 32.51 | Style | SDUPR |
• -3° Lead profiling • Coolant-thru • Takes positive 55° diamond inserts • 8:1 Ratio
