Brand: Tungaloy
Tungaloy TG206990725 E12-SDXXR2-D16
SKU: FTS-TG206990725
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6990725 E12-SDXXR2-D16Full Description

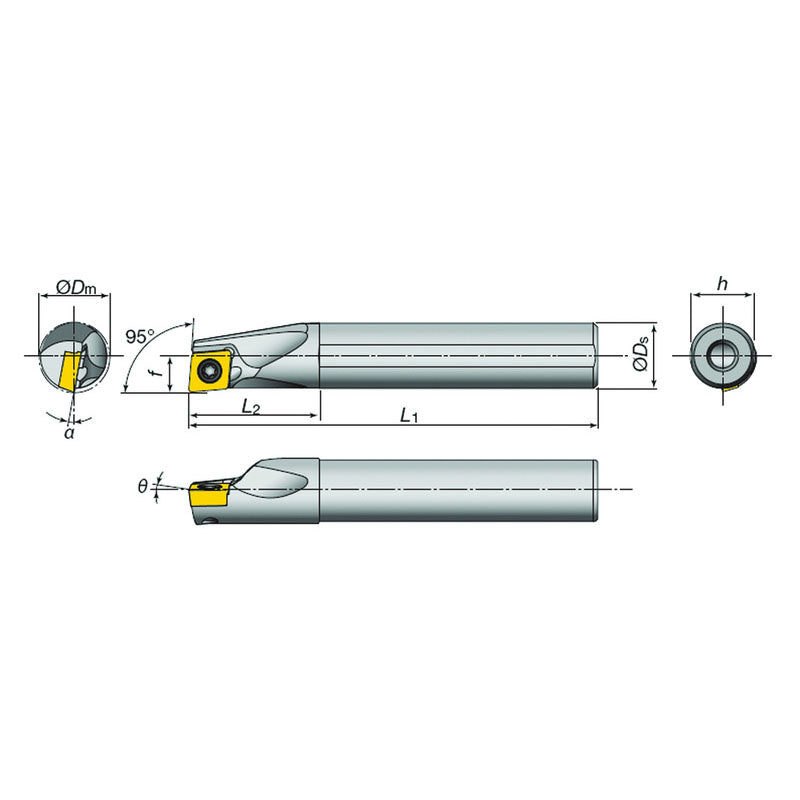

| Connection Diameter Machine Side (DCONMS) | 3/4" | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 7" | Rake Angle Axial (GAMP) | -13 Degrees |
| Head Length (LH) | 1.438" | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 0.725" | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.593" | Body Material | Carbide |
| Master Insert Identification (MIID) | DXGU221L | Style | SDXXR |
| Minimum Bore Diameter (DMIN) | 1" | Measurement Type | Inch |
Family Description
Screw-on boring bars for 55deg rhombic insert with 4 edges
The right hand insert (R) is used for the left hand toolholders (SDXXL07 D**), and the left hand insert (L) is used for the right hand toolholders (SDXXR07 D**). Torque:Recommended torque (Nm) for clamping.
