Brand: Ultra-Dex

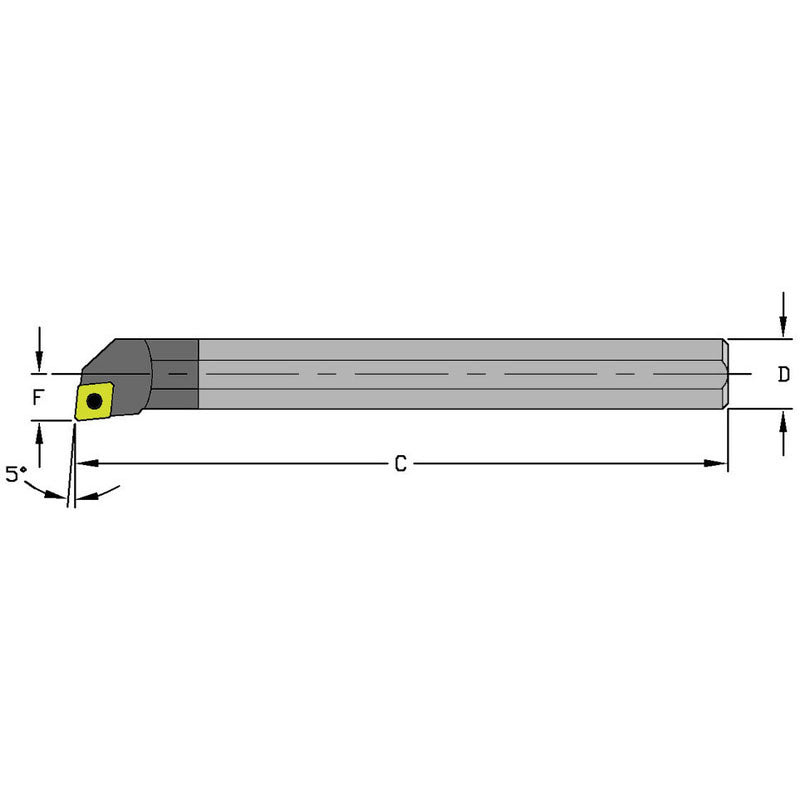

Ultra-Dex FG551188 E10S SCLCL3 Solid Carbide Boring Bar w/Coolant
SKU: FTS-FG551188
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 920-000-276 E10S SCLCL3 Solid Carbide Boring Bar w/CoolantFull Description
| Connection Diameter Machine Side (DCONMS) | 5/8" | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 0.76" | Functional Width (WF) | .406" |
| Functional Length (LF) | 10" | Master Insert Identification (MIID) | CCMT 32.51 |
| Cutting Direction (HAND) | Left Hand | Overall Length (OAL) | 10" |
• -5° Lead • Takes positive 80° diamond inserts • Coolant-thru • 8:1 Ratio
