Brand: Ultra-Dex
Ultra-Dex FG550204 Indexable Boring Bar - E08J-SWLCR2 1/2" SH; .550" Min. Bore
SKU: FTS-FG550204
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 920-000-207 Indexable Boring Bar - E08J-SWLCR2 1/2" SH; .550" Min. BoreFull Description

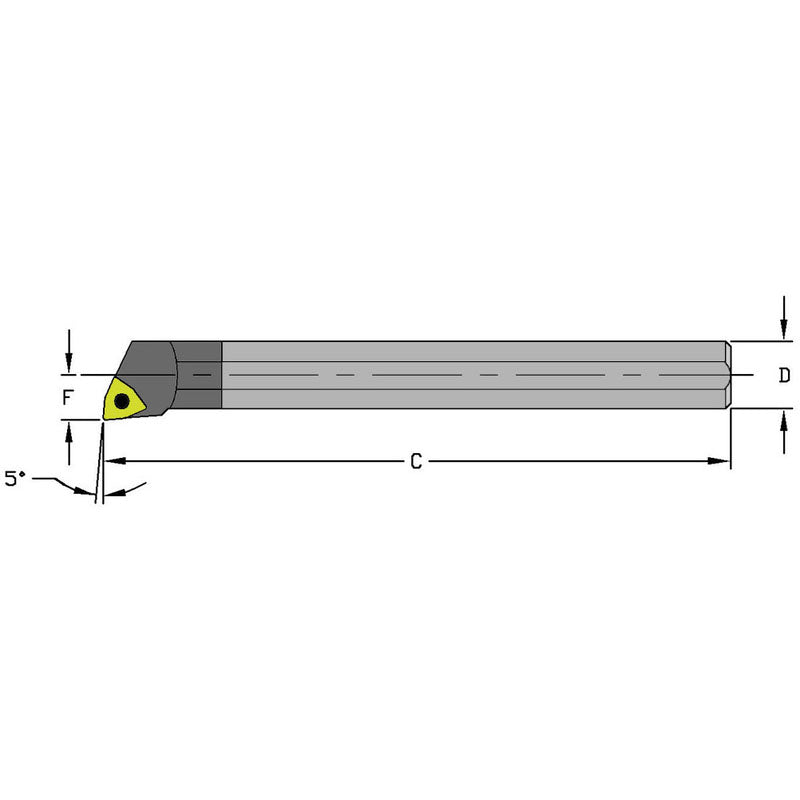

| Connection Diameter Machine Side (DCONMS) | 1/2" | Master Insert Identification (MIID) | WCMT 21.51 |
| Functional Length (LF) | 4-1/2" | Minimum Bore Diameter (DMIN) | .600" |
| Overall Length (OAL) | 4-1/2" | Cutting Direction (HAND) | Right Hand |
| Reduced Body Diameter Length (LDRED) | 0.56" | Tool Type | Indexable Coolant Thru Boring Bar |
| Functional Width (WF) | .312" | Style | SWLCR |
• 5° Lead Angle80° Trigon Screw Down No Coolant • The highest standards for quality • The braze on our bars is guaranteed not to fail.
