Brand: Ultra-Dex

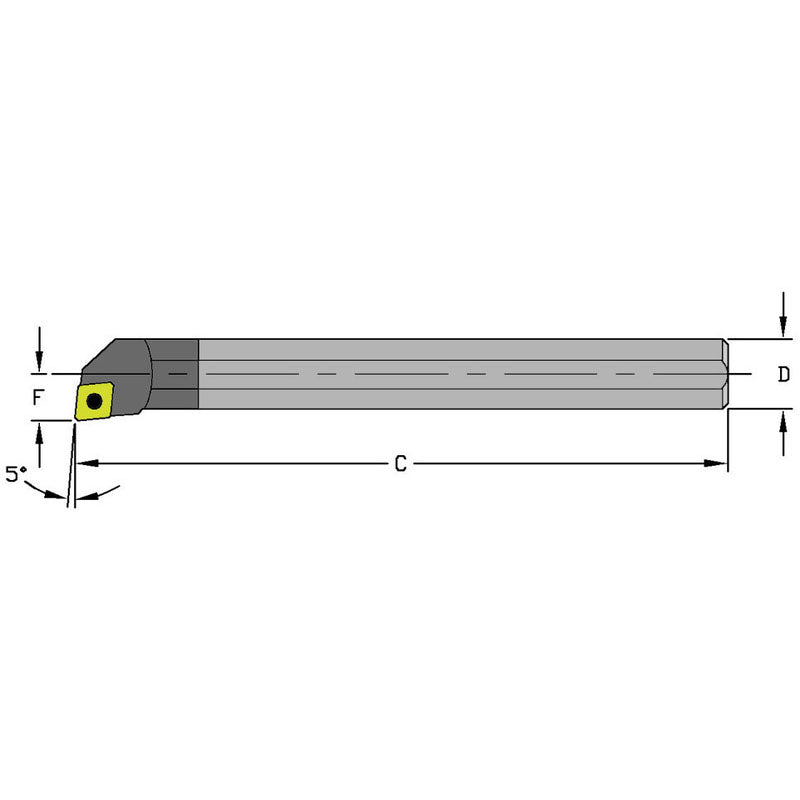

Ultra-Dex FG550037 E05K SCLPL1.8 Solid Carbide Boring Bar
SKU: FTS-FG550037
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ultra-Dex 920-000-137 E05K SCLPL1.8 Solid Carbide Boring BarFull Description
| Connection Diameter Machine Side (DCONMS) | 0.312" | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 0.34" | Functional Width (WF) | .219" |
| Functional Length (LF) | 5" | Master Insert Identification (MIID) | CPMT 1.81.20.5 |
| Cutting Direction (HAND) | Left Hand | Overall Length (OAL) | 5" |
• -5° Lead • Takes positive 80° diamond inserts • Coolant-thru • 8:1 Ratio
