Brand: Tungaloy

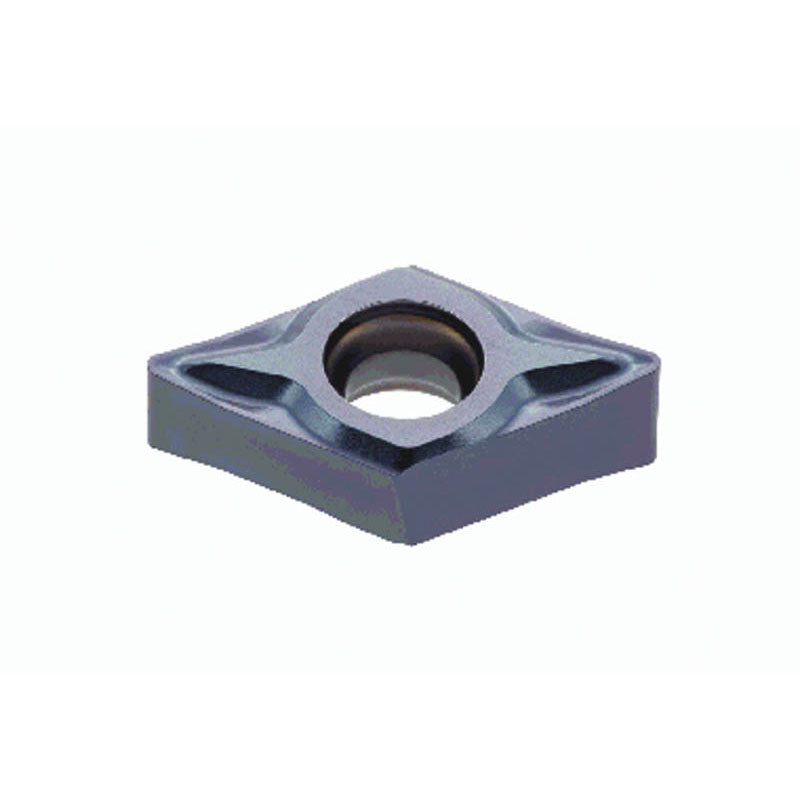

Tungaloy TG556989930 DXGU 220.5L TS AH725
SKU: FTS-TG556989930
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6989930 DXGU 220.5L TS AH725Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Fixing Hole Diameter (D1) | 0.106" |
| Application | | Inserts | | Min D.O.C. | 0.0118" |
| Insert Style | DXGU | Depth of Cut Maximum (APMX) | 0.0787" |
| Corner Radius (RE) | 0.008" | Min. Turning Feed (ft(min)) | 0.0031 "/rev |
| Insert Size | 220.5 | Max. Turning Feed (ft(max)) | 0.0118 "/rev |
| Insert Thickness (S) | 1/8" | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4" | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | TS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Series/List # | DXGU 220.5-TS |
| Tool Type | Turn Positive Inserts | Body Material | Carbide |
Family Description
Double sided 55deg rhombic inserts with TS chipbreaker for finishing to medium cutting
