Brand: Iscar

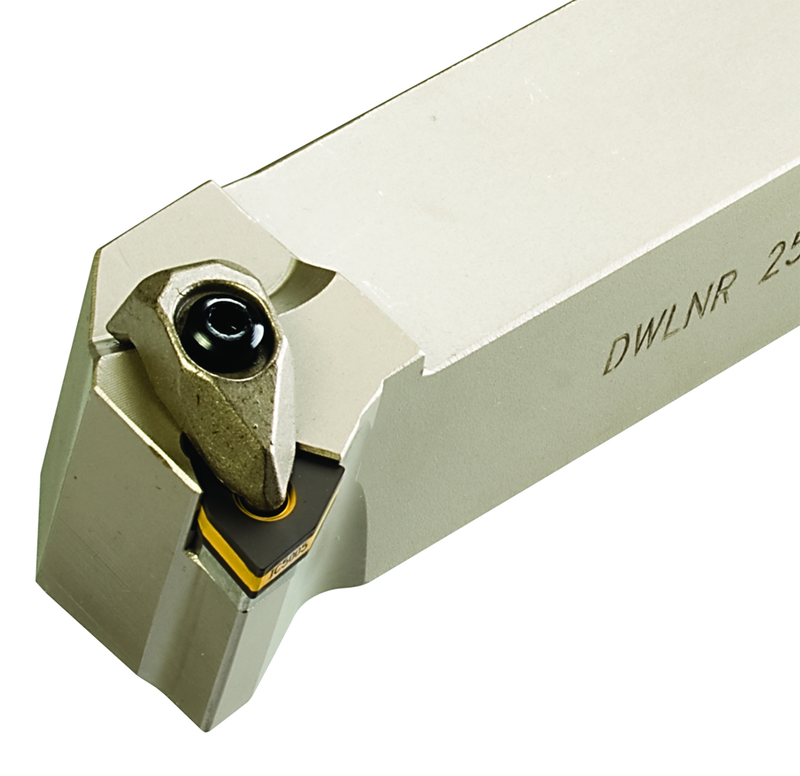

Iscar EH3602602 DWLNL 16-3D
SKU: FTS-EH3602602
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3602602 DWLNL 16-3DFull Description
| Shank Height (H) | 1" | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1" | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6" | Body Material | Steel |
| Head Length (LH) | 0.94" | Cutting Position | External |
| Functional Width (WF) | 1-1/4" | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | DWLNL163D |
| Master Insert Identification (MIID) | WNMG 33. | Insert Style | 6" |
| Application | | Ext. 80° Trigon 95° Approach | |
Family Description
R-clamp, external 95° lead tools carrying the negative WNMG trigon inserts.
