Brand: Dormer

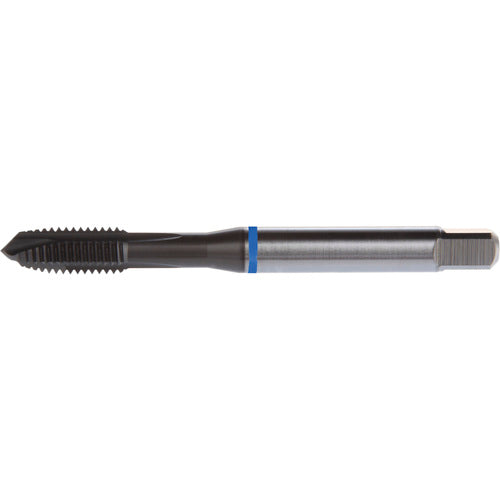

Dormer DS047350288 7/16-144 Flute H5 HSS-E PM DIN ANSI Machine Tap - Blue Shark for Stainless Steel - Plug Style E-code # E8137/16
SKU: FTS-DS047350288
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
DS047350288 " 7/16-14Â4 Flute H5 HSS-E PM DIN ANSI Machine Tap - Blue Shark for Stainless Steel - Plug Style E-code # E8137/16Full Description
| Thread Standard | UNC | Applicable Material | Stainless Steel |
| Thread Size | " 7/16" - 14 | Connection Diameter Machine Side (DCONMS) | 0.323" |
| Thread Diameter Size (TDZ) | 7/16" | Thread Cutting Part Length (THL) | 0.787" |
| Threads per Inch (TPI) | 14 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H5 | Tapping Prehole Diameter (Pre-hole) | U |
| Overall Length (OAL) | 3.937" | Flute Length | 0.787" |
| Chamfer | " 3.5P-5P | End Shape | Spiral Point |
| Coating | Super-B | Style | Plug |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS-E PM | Coolant Supply Property (CSP) | External |
| Standard | DIN ANSI | Length Group | 2.5xD |
| Tool Type | Machine Tap | Measurement Type | Fractional |
| Special Feature | Blue Shark | Series/List # | E813 |
Family Description
E-code # E8137/16
