Brand: Iscar
Iscar EH3201499 DR1250-5000-125-09-4D-N
SKU: FTS-EH3201499
MPN:

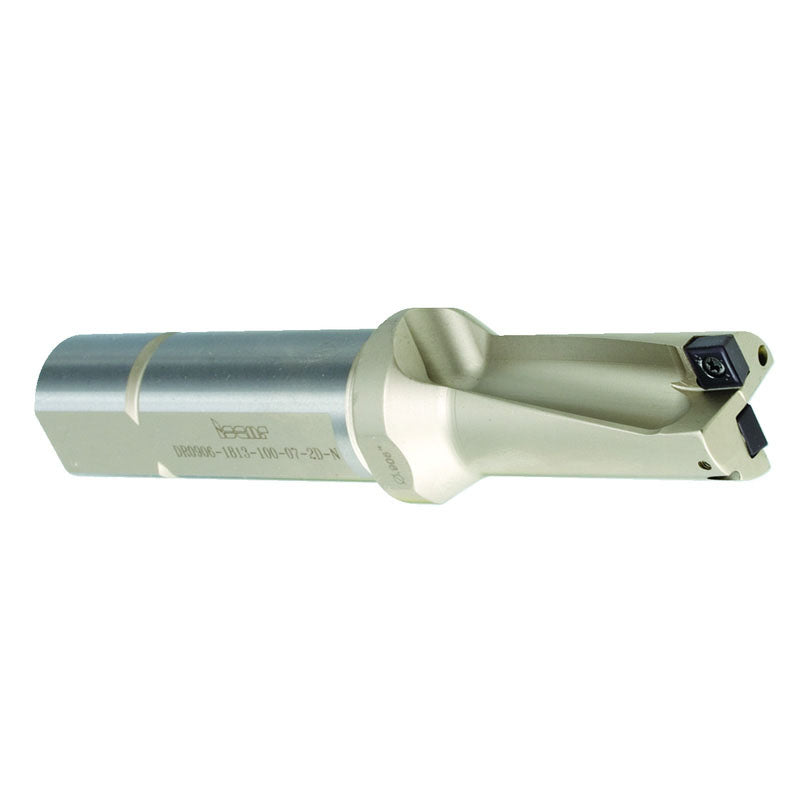

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3201499 DR1250-5000-125-09-4D-NFull Description
| Cutting Diameter (DC) | 1-1/4" | Coolant Supply Property (CSP) | Through Hole |
| Usable Length (LU) | 5" | Cutting Diameter Maximum (DCX) | 1.28" |
| Application | | Drilling | | Flange Diameter (DF) | 1.654" |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Measurement Type | Inch |
| Tool Type | indexable head drills | Length Group | 4D |
| Protruding Length (LPR) | 6.3" | Master Insert Identification (MIID) | SOMT 09 |
| Shank Length (LS) | 3" | Body Material | Steel |
| Functional Length (LF) | 6.262" | Decimal Equivalent | 1.25" |
| Overall Length (OAL) | 9.3" |
Family Description
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Hole tolerance: D+.014/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions.
