Brand: Iscar

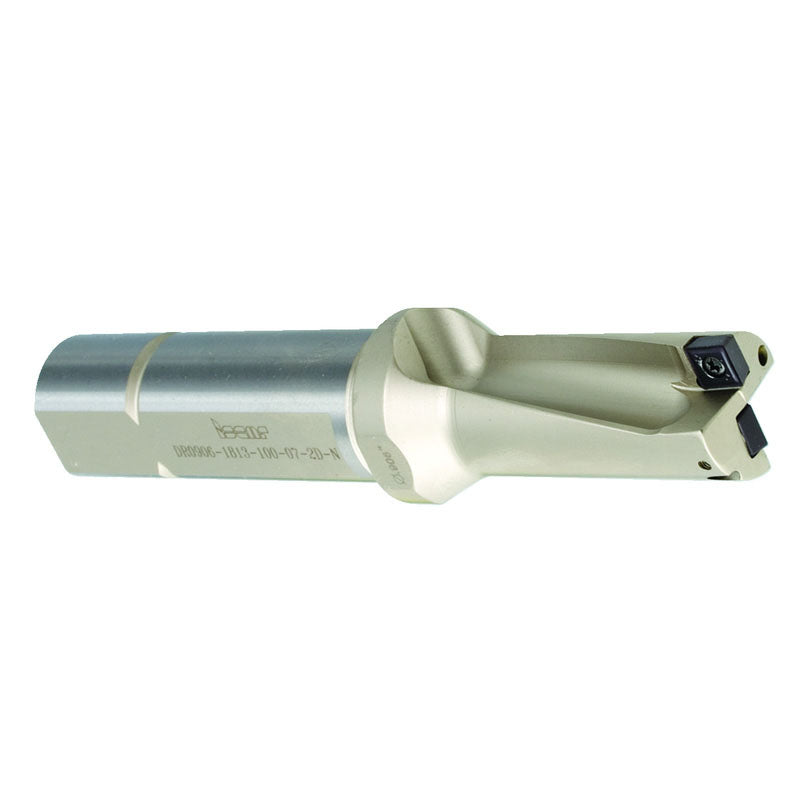

Iscar EH3202589 DR0937-4685-100-07-5D-N
SKU: FTS-EH3202589
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3202589 DR0937-4685-100-07-5D-NFull Description
| Cutting Diameter (DC) | 0.937" | Overall Length (OAL) | 8.51" |
| Usable Length (LU) | 4.69" | Coolant Supply Property (CSP) | Through Hole |
| Application | | Drilling | | Flange Diameter (DF) | 1-1/4" |
| Connection Diameter Machine Side (DCONMS) | 1" | Measurement Type | Inch |
| Tool Type | indexable head drills | Length Group | 5D |
| Protruding Length (LPR) | 5.51" | Master Insert Identification (MIID) | SOMX 07 |
| Shank Length (LS) | 3" | Body Material | Steel |
| Functional Length (LF) | 5.51" | Decimal Equivalent | 0.937" |
Family Description
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD.
Hole tolerance: D+.014/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions.
