Brand: Ingersoll Cutting Tools

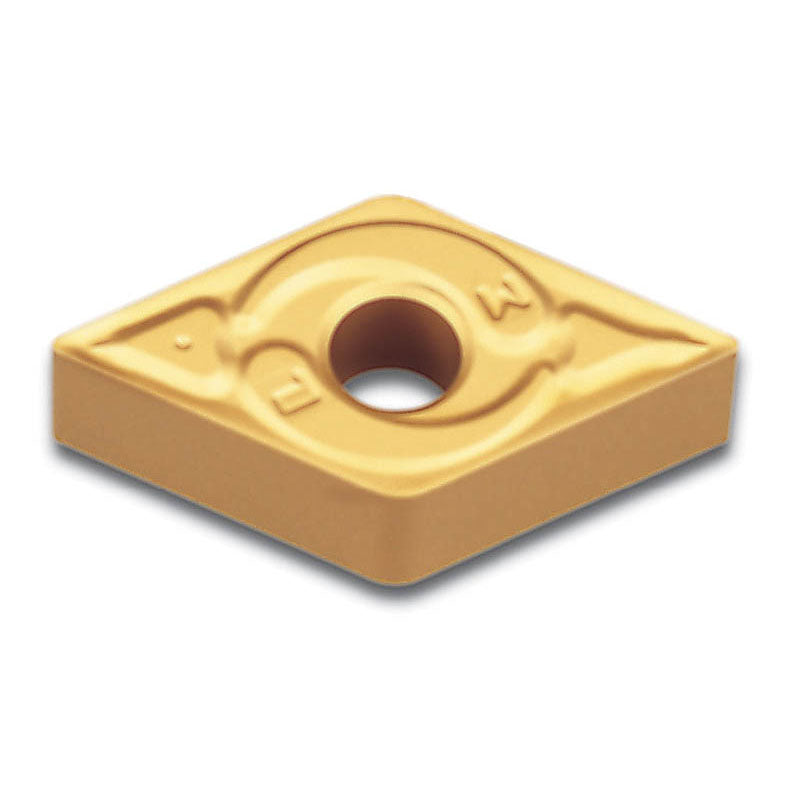

Ingersoll Cutting Tools IC065518738 DNMG432MP TT8115
SKU: FTS-IC065518738
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 5518738 DNMG432MP TT8115Full Description
| Insert Style | DNMG | Min D.O.C. | 0.039" |
| Corner Radius (RE) | 0.031" | Depth of Cut Maximum (APMX) | 0.157" |
| Insert Size | 432 | Min. Turning Feed (ft(min)) | 0.005" |
| Cutting Edge Length (L) | 0.579" | Max. Turning Feed (ft(max)) | 0.016" |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2" | Series/List # | DNMG 432-MP |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | TT8115 |
