Brand: Iscar

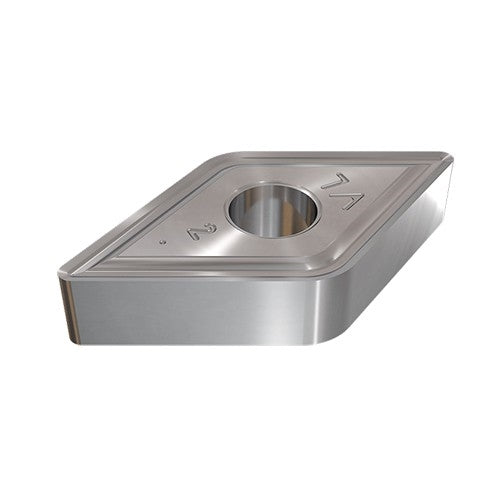

Iscar EH5567597 DNMG 332-VL IC806
SKU: FTS-EH5567597
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5567597 DNMG 332-VL IC806Full Description
| Applicable Material | | Hi Temp Alloys | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | | Min D.O.C. | 0.02" |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.138" |
| Corner Radius (RE) | 0.0315" | Min. Turning Feed (ft(min)) | 0.0039 "/rev |
| Insert Size | 332 | Max. Turning Feed (ft(max)) | 0.0098 "/rev |
| Cutting Edge Length (L) | 0.458" | Chip Breaker Type | VL |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8" | Shape | 55° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | DNMG 332-VL |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 |
Family Description
The VL chipformer is used for high temperature alloys and stainless steel (originally designed for machining valves). Can be used for facing, longitudinal turning and profiling in roughing and finishing conditions.
For dimensions and tolerances, see more info.
