Brand: Iscar

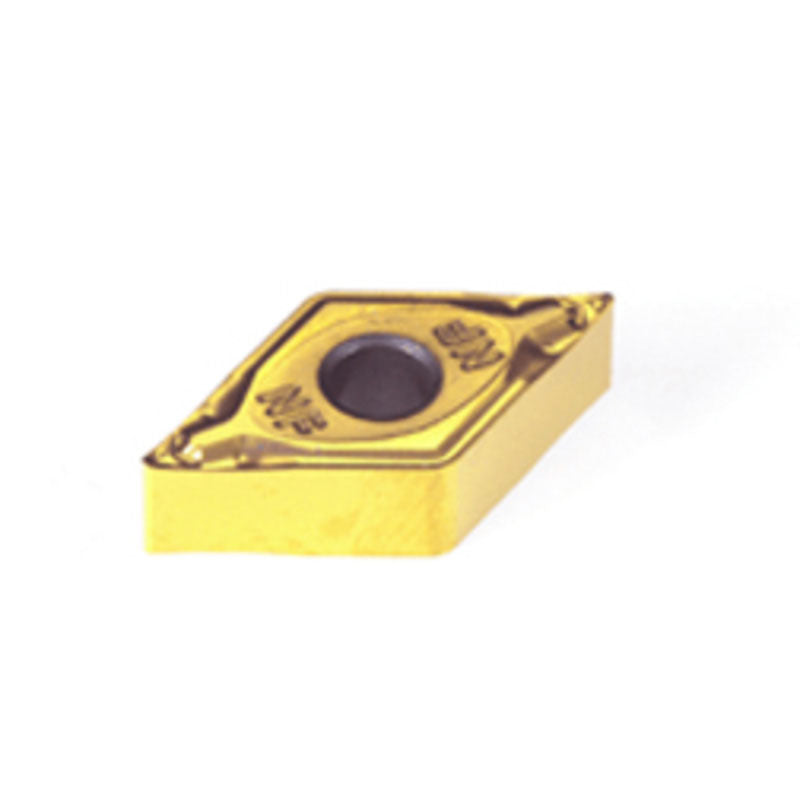

Iscar EH5504094 DNMG 331-SF IC520N
SKU: FTS-EH5504094
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5504094 DNMG 331-SF IC520NFull Description
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | | Min D.O.C. | 0.02" |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.118" |
| Corner Radius (RE) | 0.0157" | Min. Turning Feed (ft(min)) | 0.002 "/rev |
| Insert Size | 331 | Max. Turning Feed (ft(max)) | 0.0098 "/rev |
| Cutting Edge Length (L) | 0.458" | Chip Breaker Type | SF |
| Insert Thickness (S) | 0.187" | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8" | Shape | 55° Rhombic |
| Cutting Edge Material | Cermet | Series/List # | DNMG 331-SF |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC520N |
Family Description
Double-sided 55° rhombic inserts used for super finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance.
For dimensions and tolerances, see more info.
