Brand: Tungaloy

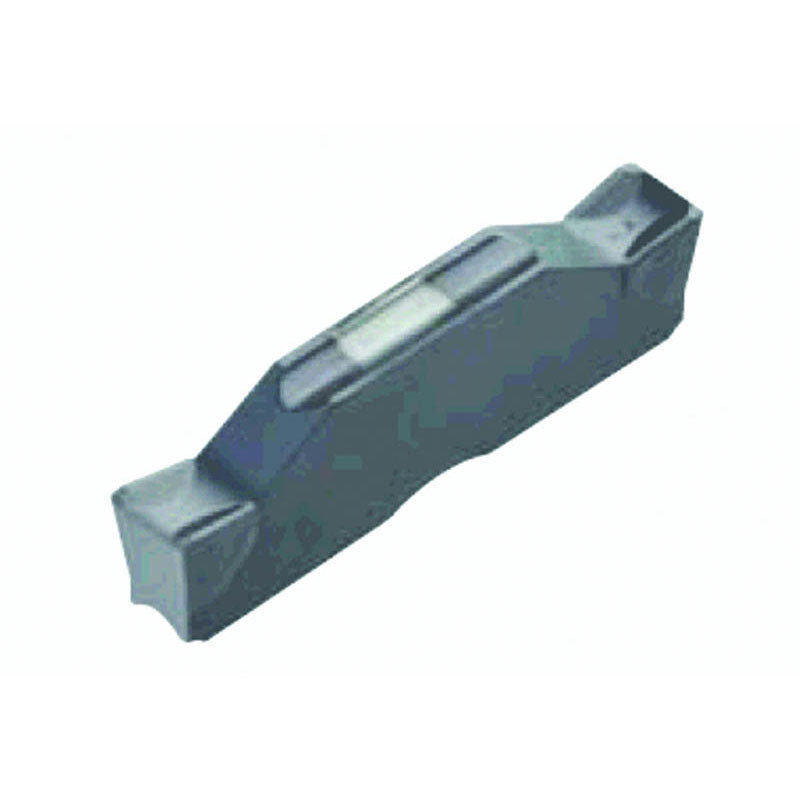

Tungaloy TG556993816 DGM4-030 T9125
SKU: FTS-TG556993816
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6993816 DGM4-030 T9125Full Description
| Cutting Width (CW) | 0.157" | Application | | Inserts | |
| Corner Radius (RE) | 0.0118" | Applicable Material | Steel | |
| Insert Length (INSL) | 0.787" | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Face Turn-Groove Inserts |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9125 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | 4 |
Family Description
Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002 inch
For "Max workpiece diameter", click on "More Info".
