Brand: DESTACO

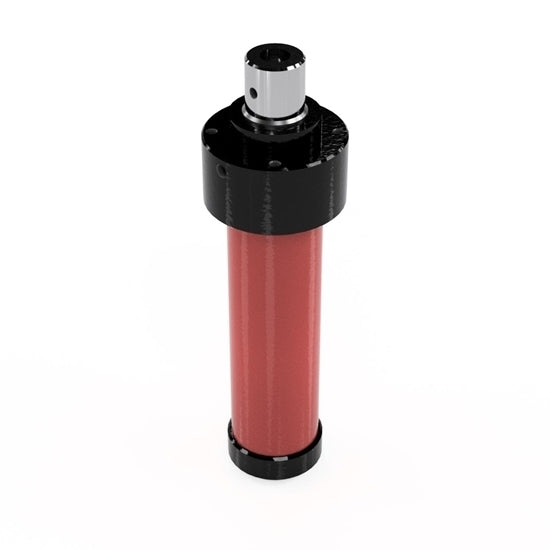

DESTACO WK600-30-6-1 POWER CYLINDER-TYPE WK-6KN-30MM STROKE W/O SENSORS
SKU: DE-STA-CO-WK600-30-6-1
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your machines, tools, and devices with the powerful DESTACO WK600-30-6-1 POWER CYLINDER-TYPE WK-6KN-30MM STROKE W/O SENSORS. This unit features a 10:1 mechanical advantage, thanks to the wedge lever principle, providing an amplified force of 4 kN during the power stroke. The piston rod with ISO fit ensures precise positioning, while the flange mount on the cylinder's head allows for exact placement. This cylinder can be used in any position and boasts high durability and maintenance-free wedge lever mechanics. Plus, magnetic field sensing allows for control of end positions. With a maximum clamping force of 1,350 lbsf, a forward stroke of 1.180 inches, a cylinder bore of 1.97 inches, and a power stroke of 0.236 inches, this powerful unit is a must-have for any machine.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO WK600-30-6-1POWER CYLINDER-TYPE WK-6KN-30MM STROKE W/O SENSORS
Power element of machines, tools and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with ISO fit.
- 10:1 mechanical advantage
- Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
- Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
- The cylinder works in any position
- High durability because of solid and maintenance-free wedge lever mechanics.
- End position control by magnetic field sensing
Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.
| Max. Clamping Force (lbsf) | 1,350 |
| Forward Stroke (in) | 1.180 |
| Cylinder Bore (in) | 1.97 |
| Power Stroke (in) | 0.236 |
| Temperature Range | -5 to 75°C (23 to 167°F) |
| Product Type | Piston Rod with ISO Fit |
| Piston force within forwarding stroke at 6 bar (lbf) | 238 |
| Air Consumption per double stroke at 6 bar (ft³) | 1.650 |
| Air Consumption per double stroke at 87 psi (ft³) | 0.06 |
| Stroke Frequency depending on total stroke (per minute) | 5 to 30 |
| Weight (lb) | 4.70 |
| Product Series Description | Power Cylinder |
| Product Function | Clamping |
| Product Family | Heavy-Duty Pneumatic Clamping |
| Product Group | pneumatic power cylinder |
