Brand: DESTACO

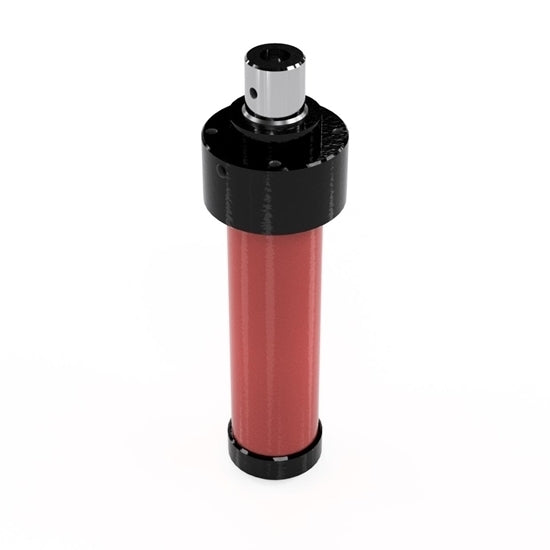

DESTACO WK600-120-6-1 PNEUMATIC POWER CYLINDER

SKU: DE-STA-CO-WK600-120-6-1
MPN: WK600-120-6-1

$2,453.29
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the power of the DESTACO WK600-120-6-1 PNEUMATIC POWER CYLINDER! This mechanical marvel, with its 10:1 mechanical advantage and wedge lever principle, is the ultimate addition to any machine, tool, or device. The two-step stroke allows for precise movement and an impressive 4 kN of amplified force. With an ISO-fitted piston rod and flange mount for exact positioning, this cylinder can work in any position. Plus, its solid and maintenance-free wedge lever mechanics ensure high durability. Don't settle for less than the best - upgrade to the DESTACO WK600-120-6-1 PNEUMATIC POWER CYLINDER today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO WK600-120-6-1 PNEUMATIC POWER CYLINDER

Power element of machines, tools and devices. Mechanical advantage 10:1, due to the wedge lever principle. The unit has a two steps stroke consisting of the forward stroke and the power stroke with the amplified force (4 kN). Piston rod with ISO fit.

10:1 mechanical advantage
Characteristic are the two steps of stroke: the forward stroke to move a certain distance and the power stroke with an amplified force on a short distance
Exact positioning of the cylinder by flange mount on cylinder‚¬„¢s head
The cylinder works in any position
High durability because of solid and maintenance-free wedge lever mechanics.
End position control by magnetic field sensing

Note:Operating pressure max. 6 bar [87psi], min 3 bar [44psi]. Use only clean, water- and oil-free compressed air. The piston rod is not secured against twisting and should not be loaded transversal.

Max. Clamping Force (lbsf)	1,350
Forward Stroke (in)	4.720
Cylinder Bore (in)	1.97
Power Stroke (in)	0.236
Temperature Range	-5 to 75°C (23 to 167°F)
Product Type	Piston Rod with ISO Fit
Piston force within forward stroke at 6 bar (lbf)	238
Air Consumption per double stroke at 6 bar (ft³)	3.500
Air Consumption per double stroke at 87 psi (ft³)	0.12
Stroke Frequency depending on total stroke (per minute)	5 to 30
Weight (lb)	6.00
Product Series Description	Power Cylinder
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power cylinder
