Brand: DESTACO

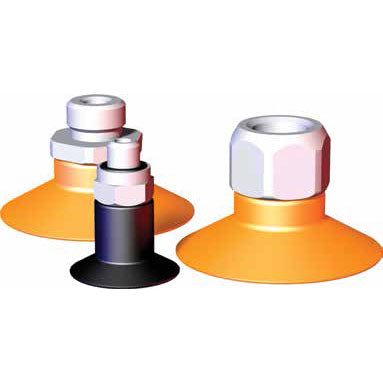

DESTACO VC-F50S-18F 50mm DIA Silicone Flat Cup - 1/8 NPT Female
SKU: DE-STA-CO-VC-F50S-18F
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Explore the impressive DESTACO VC-F50S-18F 50mm DIA Silicone Flat Cup - 1/8 NPT Female for optimal performance in automation, workholding, and containment. With a focus on high precision and holding capacity, these micro flatfoot vacuum cups are designed for dry to moderately oily surfaces. The A50 (Orange) Durometer and 1/8 G Female mount make it perfect for low compression distances and higher precision applications. Energetically seize your opportunity with this 50 mm, 1.97 in cup size product.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-F50S-18F 50mm DIA Silicone Flat Cup - 1/8 NPT Female
General purpose micro flatfoot vacuum cups best used on moderatly flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For relatively flat surfaces.
- Dry to moderate oily/slippery surfaces.
- Low Compression distances.
- Higher precision applications.
| Holding Capacity - Vertical Lift (kg) | 8 |
| Holding Capacity - Vertical Lift (lbf) | 17 |
| Weight (g) | 19.6 |
| Weight (oz) | 0.6 |
| Diameter (mm) | 53.1 |
| Diameter (in) | 2.080 |
| Material | Silicone |
| Durometer | A50 (Orange) |
| Mount | 1/8 G Female |
| Temperature Range | -100° to 400°F (-73° to 204.4°C) |
| Shape | Round |
| Product Type | Micro Flat |
| Cup Size | 50 mm |
| Cup Size | 1.97 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
