Brand: DESTACO

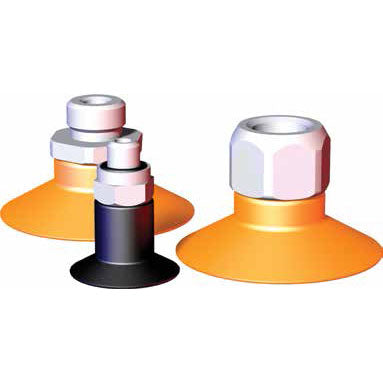

DESTACO VC-F40S-18F 40mm DIA Silicone Flat Cup - 1/8 NPT Female

SKU: DE-STA-CO-VC-F40S-18F
MPN: VC-F40S-18F

  • $41.05
    Unit price per
  • Save $4.73
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Maximize your productivity with the DESTACO VC-F40S-18F 40mm DIA Silicone Flat Cup - 1/8 NPT Female. This high-quality vacuum cup is perfect for moderately flat to medium contour surfaces, ensuring strong holds with its low compression distance. The A50 (Orange) silicone material provides exceptional grip on dry to moderately oily/slippery surfaces, making it ideal for precise and high-performance tasks. With a vertical lift capacity of 4 kg (9 lbf) and a diameter of 42.2 mm, this micro flat cup is a must-have for any precision application. Trust in its round, 40 mm size to deliver top-notch results every time. Upgrade your work with the DESTACO VC-F40S-18F and achieve optimal efficiency and precision.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO VC-F40S-18F 40mm DIA Silicone Flat Cup - 1/8 NPT Female

General purpose micro flatfoot vacuum cups best used on moderatly flat to medium contour, dry surfaces

  • For relatively flat surfaces.
  • Dry to moderate oily/slippery surfaces.
  • Low Compression distances.
  • Higher precision applications.
Holding Capacity - Vertical Lift (kg) 4
Holding Capacity - Vertical Lift (lbf) 9
Weight (g) 11.8
Weight (oz) 0.4
Diameter (mm) 42.2
Diameter (in) 1.660
Material Silicone
Durometer A50 (Orange)
Mount 1/8 G Female
Temperature Range -100° to 400°F (-73° to 204.4°C)
Shape Round
Product Type Micro Flat
Cup Size 40 mm
Cup Size 1.57 in
Product Series Description Nitrile Rubber
Product Function Robotic Tooling
Product Family End Effectors
Product Group vacuum cups
