Brand: DESTACO
DESTACO VC-F20N-10M 20mm DIA Nitrile Flat Cup - 10/32 (M5) Male
SKU: DE-STA-CO-VC-F20N-10M
MPN:

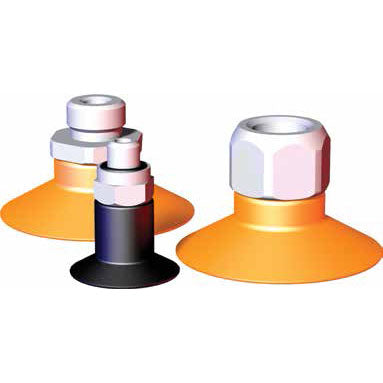

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This high-performance DESTACO VC-F20N-10M vacuum cup offers versatile use on moderately flat or medium contour surfaces. Its nitrile material and 20mm diameter make it perfect for gripping dry or lightly oily surfaces with low compression distances. With a holding capacity of 1kg (3lbf) in vertical lift, this cup is suitable for precision applications. The A50 durometer and round shape provide durability and optimal suction, while the M5 male mount ensures a secure fit. Trust in this micro flat cup for all your automation, workholding, and containment needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-F20N-10M 20mm DIA Nitrile Flat Cup - 10/32 (M5) Male
General purpose micro flatfoot vacuum cups best used on moderatly flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For relatively flat surfaces.
- Dry to moderate oily/slippery surfaces.
- Low Compression distances.
- Higher precision applications.
| Holding Capacity - Vertical Lift (kg) | 1 |
| Holding Capacity - Vertical Lift (lbf) | 3 |
| Weight (g) | 7.8 |
| Weight (oz) | 0.3 |
| Diameter (mm) | 22.1 |
| Diameter (in) | 0.870 |
| Material | Nitrile |
| Durometer | A50 (Black) |
| Mount | M5 Male |
| Temperature Range | -40° to 275°F (-40° to 135°C) |
| Shape | Round |
| Product Type | Micro Flat |
| Cup Size | 20 mm |
| Cup Size | 0.79 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
