Brand: DESTACO

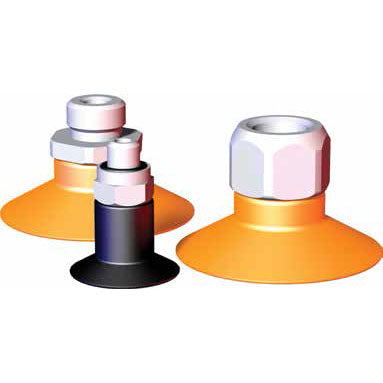

DESTACO VC-F15S-10M 15mm DIA Silicone Flat Cup - 10/32 (M5) Male

SKU: DE-STA-CO-VC-F15S-10M
MPN: VC-F15S-10M

  • $57.77
    Unit price per
  • Save $6.67
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the incredible performance of the 15mm DIA DESTACO VC-F15S-10M Silicone Flat Cup - now available with a 10/32 (M5) Male mounting option! Perfect for moderately flat to medium contour surfaces, this micro flatfoot vacuum cup delivers precision and durability for all your automation, workholding, and containment needs. With a low compression distance and A50 Durometer, this cup is ideal for high-precision applications. Say goodbye to slips and spills with its strong holding capacity - capable of lifting up to 1kg or 2 lbf. Trust in the best, choose DESTACO for all your automation solutions.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO VC-F15S-10M 15mm DIA Silicone Flat Cup - 10/32 (M5) Male

General purpose micro flatfoot vacuum cups best used on moderatly flat to medium contour, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • For relatively flat surfaces.
  • Dry to moderate oily/slippery surfaces.
  • Low Compression distances.
  • Higher precision applications.
Holding Capacity - Vertical Lift (kg) 1
Holding Capacity - Vertical Lift (lbf) 2
Weight (g) 3.4
Weight (oz) 0.1
Diameter (mm) 16.5
Diameter (in) 0.650
Material Silicone
Durometer A50 (Orange)
Mount M5 Male
Temperature Range -100° to 400°F (-73° to 204.4°C)
Shape Round
Product Type Micro Flat
Cup Size 15 mm
Cup Size 0.59 in
Product Series Description Nitrile Rubber
Product Function Robotic Tooling
Product Family End Effectors
Product Group vacuum cups
