Brand: DESTACO

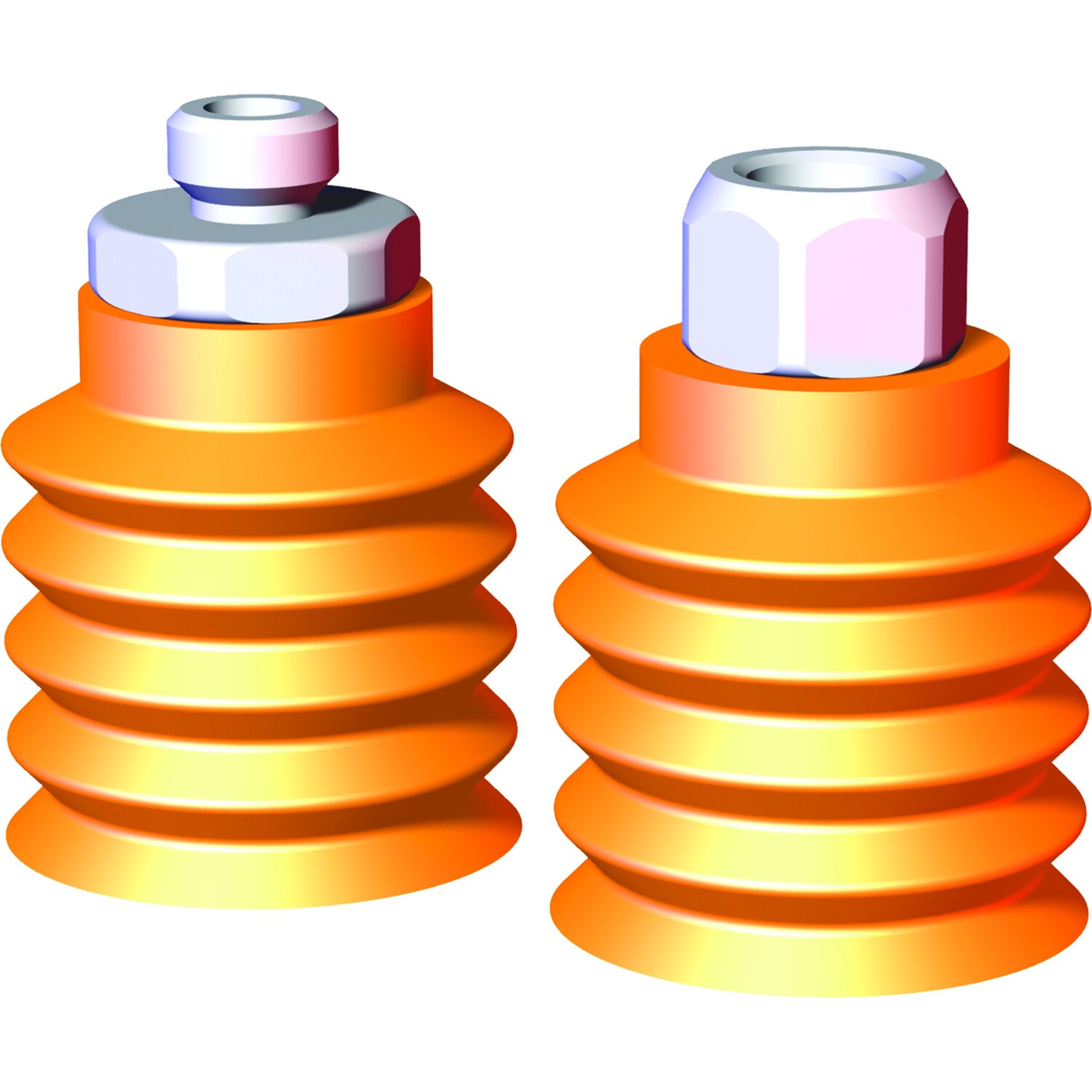

DESTACO VC-BM50V-18M Micro Series, Round Multi-Bellows Vacuum Cups
SKU: DE-STA-CO-VC-BM50V-18M
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
The DESTACO VC-BM50V-18M Micro Series, Round Multi-Bellows Vacuum Cups provides the contact surface between a vacuum handling system and the workpiece. It is made from viton. Key specifications include diameter (in): 1.97, shape: Round, durometer: A50 (Gray). This model belongs to DESTACO’s Vacuum Handling family and Vacuum Products Vacuum Cups product group. Review the specifications below when selecting components for your tooling layout.
Product Specifications
| Brand | DESTACO |
|---|---|
| Part Number | VC-BM50V-18M |
| Product Family | Vacuum Handling |
| Product Group | Vacuum Products Vacuum Cups |
| Product Type | Micro Multi-Bellows Cups |
| Weight (oz) | 1.05 |
| Weight (g) | 32.7 |
| Durometer | A50 (Gray) |
| Shape | Round |
| Diameter (in) | 1.97 |
| Holding Capacity - Vertical Lift (lbf) | 9.63 |
| Cup Size | 1.97 in |
| Material | Viton |
| Weight (lb) | 0.06563 |
