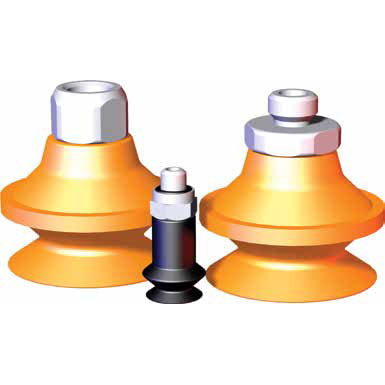

DESTACO VC-B50V-18M 50mm DIA Viton Bellows Cup - 1/8 NPT Male
SKU: DE-STA-CO-VC-B50V-18M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience enhanced performance and efficiency with the DESTACO VC-B50V-18M 50mm DIA Viton Bellows Cup - 1/8 NPT Male. This single bellows vacuum cup, specially designed for moderately flat and dry surfaces, offers exceptional holding capacity with its moderate compression distance. Its bellows feature allows for minor misalignments, ensuring a secure hold. With a diameter of 52.8mm, this cup is perfect for a variety of applications. Trust in DESTACO for high-performance automation, workholding, and containment solutions.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-B50V-18M 50mm DIA Viton Bellows Cup - 1/8 NPT Male
General purpose single bellows vacuum cups best used on moderatly flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For moderately flat surfaces.
- Best performance on dry surfaces.
- Moderate compression distance.
- Bellows allows for minor misalignments.
| Holding Capacity - Vertical Lift (kg) | 7 |
| Holding Capacity - Vertical Lift (lbf) | 15 |
| Weight (g) | 30.5 |
| Weight (oz) | 1.0 |
| Diameter (mm) | 52.8 |
| Diameter (in) | 2.080 |
| Material | Viton |
| Durometer | A50 (Gray) |
| Mount | 1/8 G Male |
| Temperature Range | -40° to 450°F (-40° to 232°C) |
| Shape | Round |
| Product Type | Micro Bellows |
| Cup Size | 50 mm |
| Cup Size | 1.97 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
