Brand: DESTACO

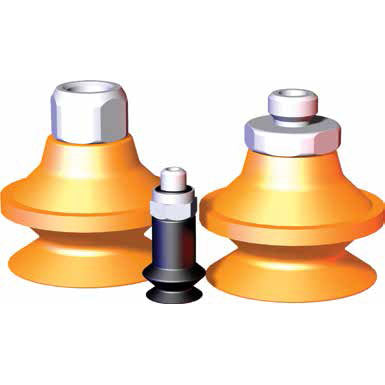

DESTACO VC-B50S-18M 50mm DIA Silicone Bellows Cup - 1/8 NPT Male
SKU: DE-STA-CO-VC-B50S-18M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Improve your automation, workholding, and containment with the cutting-edge DESTACO VC-B50S-18M 50mm DIA silicone bellows cup - ideal for moderately flat, dry surfaces. This high-performance micro bellows offers a moderate compression distance and can handle up to 7 kg or 15 lbf of vertical lift. With its flexible bellows design, even minor misalignments are no issue. Upgrade to the best with DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-B50S-18M 50mm DIA Silicone Bellows Cup - 1/8 NPT Male
General purpose single bellows vacuum cups best used on moderatly flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For moderately flat surfaces.
- Best performance on dry surfaces.
- Moderate compression distance.
- Bellows allows for minor misalignments.
| Holding Capacity - Vertical Lift (kg) | 7 |
| Holding Capacity - Vertical Lift (lbf) | 15 |
| Weight (g) | 30.5 |
| Weight (oz) | 1.0 |
| Diameter (mm) | 52.8 |
| Diameter (in) | 2.080 |
| Material | Silicone |
| Durometer | A50 (Orange) |
| Mount | 1/8 G Male |
| Temperature Range | -100° to 400°F (-73° to 204.4°C) |
| Shape | Round |
| Product Type | Micro Bellows |
| Cup Size | 50 mm |
| Cup Size | 1.97 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
