Brand: DESTACO

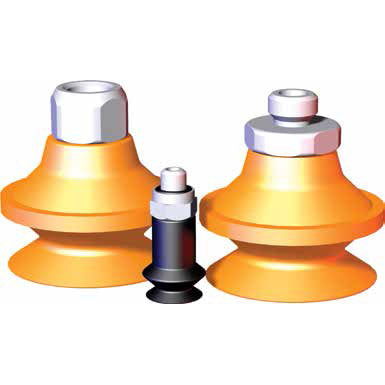

DESTACO VC-B50N-18F 50mm DIA Nitrile Bellows Cup - 1/8 NPT Female
SKU: DE-STA-CO-VC-B50N-18F
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power of DESTACO VC-B50N-18F 50mm Nitrile Bellows Cup - designed for maximum performance and versatility. Perfect for moderately flat, dry surfaces, this cup's bellows design allows for minor misalignments and offers a moderate compression distance to ensure a secure grip. With a holding capacity of 7kg/15lbf and a diameter of 52.8mm, this bellows cup is the perfect choice for high-performance automation, workholding, and containment solutions. Order now and experience the incredible capabilities of this micro bellows cup!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-B50N-18F 50mm DIA Nitrile Bellows Cup - 1/8 NPT Female
General purpose single bellows vacuum cups best used on moderatly flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For moderately flat surfaces.
- Best performance on dry surfaces.
- Moderate compression distance.
- Bellows allows for minor misalignments.
| Holding Capacity - Vertical Lift (kg) | 7 |
| Holding Capacity - Vertical Lift (lbf) | 15 |
| Weight (g) | 30.5 |
| Weight (oz) | 1.0 |
| Diameter (mm) | 52.8 |
| Diameter (in) | 2.080 |
| Material | Nitrile |
| Durometer | A50 (Black) |
| Mount | 1/8 G Female |
| Temperature Range | -40° to 275°F (-40° to 135°C) |
| Shape | Round |
| Product Type | Micro Bellows |
| Cup Size | 50 mm |
| Cup Size | 1.97 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
