Brand: DESTACO

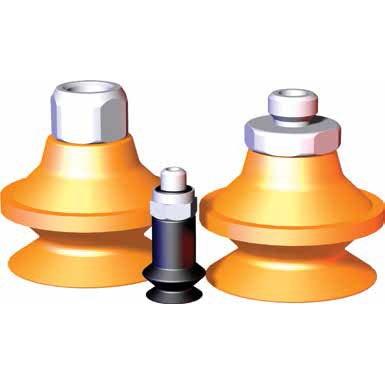

DESTACO VC-B40S-18F 40mm DIA Silicone Bellows Cup - 1/8 NPT Female
SKU: DE-STA-CO-VC-B40S-18F
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the superior holding power of the DESTACO VC-B40S-18F 40mm DIA Silicone Bellows Cup - designed for maximum efficiency on moderately flat and dry surfaces! The high-quality silicone material and bellows design allow for minor surface irregularities, ensuring a strong grip every time. With a mounting size of 1/8 G Female and a diameter of 42.9mm, this micro bellows cup is perfect for a variety of applications. Elevate your productivity with this reliable and versatile product - with a vertical lift capacity of 4kg (9lbf), it's sure to exceed your expectations. Order yours today and experience the difference for yourself!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO VC-B40S-18F 40mm DIA Silicone Bellows Cup - 1/8 NPT Female
General purpose single bellows vacuum cups best used on moderatly flat, dry surfaces
- For moderately flat surfaces.
- Best performance on dry surfaces.
- Moderate compression distance.
- Bellows allows for minor misalignments.
| Holding Capacity - Vertical Lift (kg) | 4 |
| Holding Capacity - Vertical Lift (lbf) | 9 |
| Weight (g) | 18.7 |
| Weight (oz) | 0.6 |
| Diameter (mm) | 42.9 |
| Diameter (in) | 1.690 |
| Material | Silicone |
| Durometer | A50 (Orange) |
| Mount | 1/8 G Female |
| Temperature Range | -100° to 400°F (-73° to 204.4°C) |
| Shape | Round |
| Product Type | Micro Bellows |
| Cup Size | 40 mm |
| Cup Size | 1.57 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
