Brand: DESTACO

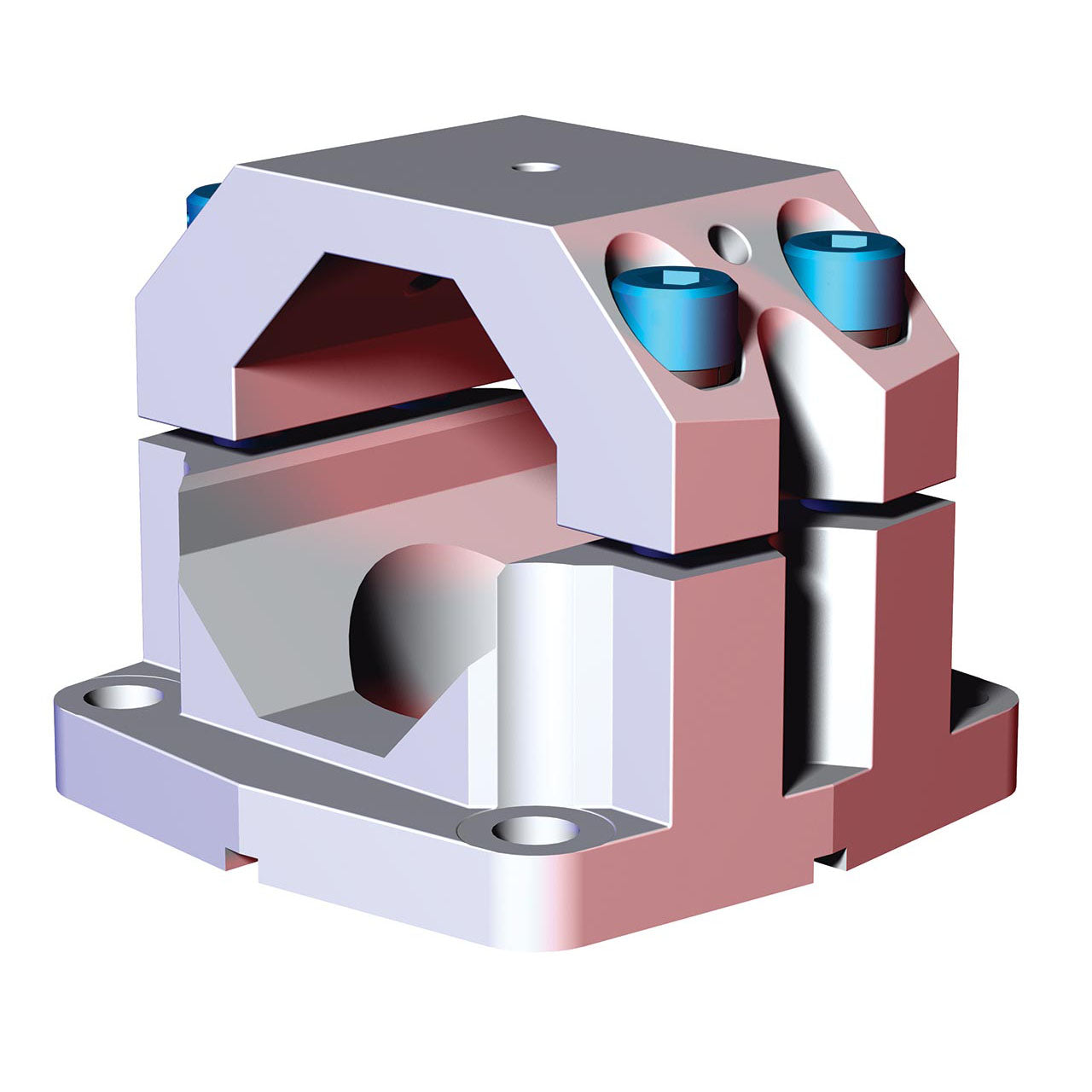

DESTACO TBC-60-00 TRANSITION BRACKET CLAMP
SKU: DE-STA-CO-TBC-60-00
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO TBC-60-00 TRANSITION BRACKET CLAMP allows for parallel mounting of 60mm extrusion to the mounting surface. It can also be utilized as a robot interface, perfect for situations where a quick-change connector is not necessary. The package includes alignment nuts and is made of high-quality aluminum. With a maximum static clamp load of 746 Nm (550 ft lbs), this mount is perfect for mid flange applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO TBC-60-00 TRANSITION BRACKET CLAMP
Mounts 60mm extrusion parallel to the mounting surface.
- Mounts 60mm extrusion parallel to the mounting surface
- Can be used as robot interface when quick-change connector is not required.
- Alignment nuts included
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Material | Aluminum |
| Maximum Static Clamp Load (Nm) | 746 |
| Maximum Static Clamp Load (ft lb) | 550 |
| Product Type | Mount, Mid Flange |
| Tube Size | 60B |
| Weight (kg) | 0.92 |
| Weight (lb) | 2.00 |
| Product Series Description | Transition Brackets and Block |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
