Brand: DESTACO

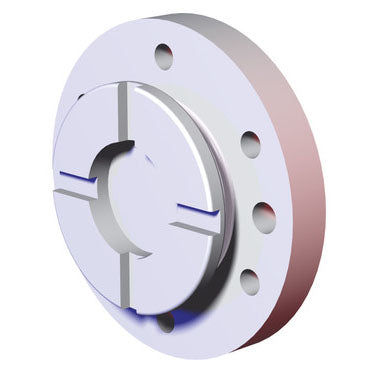

DESTACO STS0025-NA 25MM EDGE PART

SKU: DE-STA-CO-STS0025-NA
MPN: STS0025-NA

$133.96
Unit price per
Save $15.49

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO STS0025-NA 25MM EDGE PART is an essential component for any high-performance automation, workholding, or containment solution. With its 70 mm base anchor, 6xM8x1.25 6H thru holes, and 2x8H7 dowel holes on a 70 mm bolt circle mounting pattern, this product offers unparalleled versatility and efficiency. Its 50 mm face offset also provides added convenience for mounting. Experience the power of the DESTACO STS0025-NA 25MM EDGE PART and elevate your automation capabilities.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO STS0025-NA 25MM EDGE PART

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

70 mm base anchor
Includes 6xM8x1.25 6H thru holes and 2x8H7 dowel holes on 70 mm bolt circle mounting pattern
50 mm face offset

Bolt Circle (mm)	70.0
Bolt Circle (in)	2.760
Height (mm)	25.0
Height (in)	0.980
Mounting Pattern	6xM8x1.25 6H and 2x8 H7 dowel holes on 70 mm B.C.
Face Offset (mm)	25
Product Type	Anchor
Weight (kg)	0.25
Weight (lb)	0.60
Product Series Description	Edge Mount
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	spidergrip end effectors
