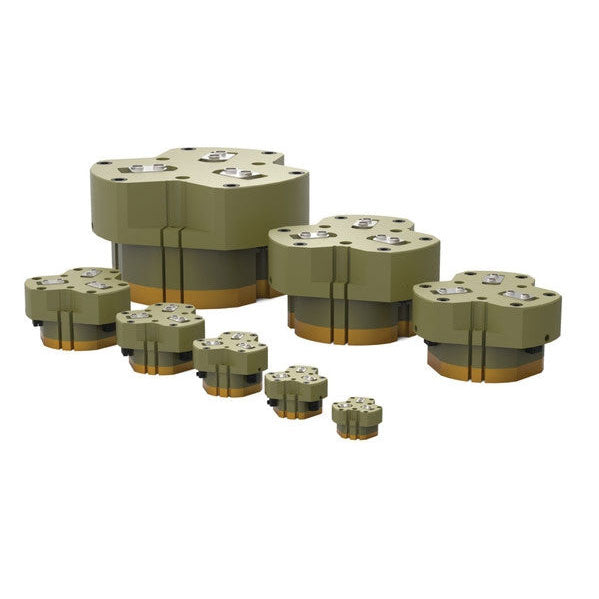

DESTACO RTH-8M-L 3 JAW PARALLEL GRIPPER

Brand: DESTACO

DESTACO RTH-8M-L 3 JAW PARALLEL GRIPPER

SKU: DE-STA-CO-RTH-8M-L
MPN: RTH-8M-L

  • $10,006.04
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO RTH-8M-L 3 JAW PARALLEL GRIPPER is designed for efficient machine loading and unloading. Its shielded design protects the internal drive mechanism from chips and other particles. With two available stroke lengths and three concentric jaws, this gripper ensures precise handling of round parts. Its compact and robust design allows for use in confined spaces, while still providing a strong grip force. The large surface area of the jaws, along with the encapsulated bottom case, allows for longer finger designs. With a variety of options and accessories, this versatile gripper is an excellent choice for any task. Its metric grip force of 22,784 N (5,122 lbsf) or 28,690 N (6,450 lbsf) with spring assist, and a stroke length of 70.0 mm (2.760 in) or 225 mm (8.86 in) cylinder bore, make it a powerful tool for any project.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO RTH-8M-L 3 JAW PARALLEL GRIPPER

The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.

  • The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
  • Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
  • The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
  • Versatile gripper with a wide range of options and accessories
Product Metric
Grip Force (N) 22,784
Grip Force (lbsf) 5,122
Grip Force with Spring Assist (N) 28,690
Grip Force with Spring Assist (lb) 6,450
Stroke (mm) 70.0
Stroke (in) 2.760
Cylinder Bore (mm) 225
Cylinder Bore (in) 8.86
Pressure Range Without Springs 30-100 psi
Pressure Range With Springs 55-100 psi
Max Vacuum (in. Hg) 8
Max Vacuum (mm Hg) 20
Temp Range Standard -35° to 80°C (-30° to 180°F)
Temp Range Viton -30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec) 2
Accuracy (±mm) 0.100
Repeatability (±mm) 0.050
Maximum Finger Length (mm) 406
Maximum Finger Length (in) 16.00
Product Type 3 Jaw Parallel
Special Feature Heavy Duty
Spring Assist Optional
Stroke per Jaw (mm) 35.00
Stroke per Jaw (in) 1.38
Weight (kg) 43.90
Weight (lb) 96.80
Product Series Description 3-Jaw Parallel Gripper
Number of Jaws 3
Product Function Gripping
Product Family Grippers
Product Group Parallel Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
