Brand: DESTACO

DESTACO RTH-7M-L 3 JAW PARALLEL GRIPPER

SKU: DE-STA-CO-RTH-7M-L
MPN: RTH-7M-L

$8,023.95
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO RTH-7M-L 3 JAW PARALLEL GRIPPER is perfect for loading and unloading machines, with its protective design that repels chips and other particles. This versatile gripper comes in two stroke lengths, and its concentric jaws and high repeatability make it easy to accurately handle round parts. Plus, its compact and robust nature allows for use in confined spaces, and the encapsulated bottom case design allows for long finger designs. With a wide range of options and accessories and impressive grip force metrics, this is a must-have for any industrial application!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

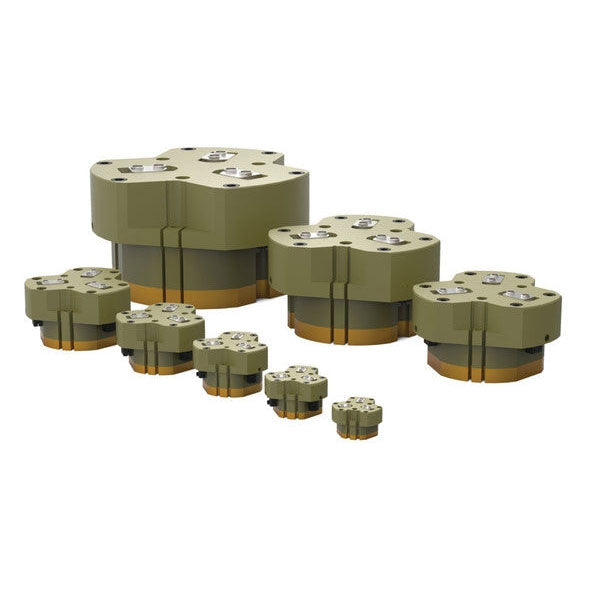

DESTACO RTH-7M-L 3 JAW PARALLEL GRIPPER

The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.

The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
Versatile gripper with a wide range of options and accessories

Product	Metric
Grip Force (N)	11,102
Grip Force (lbsf)	2,496
Grip Force with Spring Assist (N)	14,322
Grip Force with Spring Assist (lb)	3,222
Stroke (mm)	50.0
Stroke (in)	1.970
Cylinder Bore (mm)	156
Cylinder Bore (in)	6.14
Pressure Range Without Springs	30-100 psi
Pressure Range With Springs	55-100 psi
Max Vacuum (in. Hg)	8
Max Vacuum (mm Hg)	20
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	1
Accuracy (±mm)	0.100
Repeatability (±mm)	0.050
Maximum Finger Length (mm)	355
Maximum Finger Length (in)	14.00
Product Type	3 Jaw Parallel
Special Feature	Heavy Duty
Spring Assist	Optional
Stroke per Jaw (mm)	25.00
Stroke per Jaw (in)	0.99
Weight (kg)	15.70
Weight (lb)	34.60
Product Series Description	3-Jaw Parallel Gripper
Number of Jaws	3
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
