Brand: DESTACO

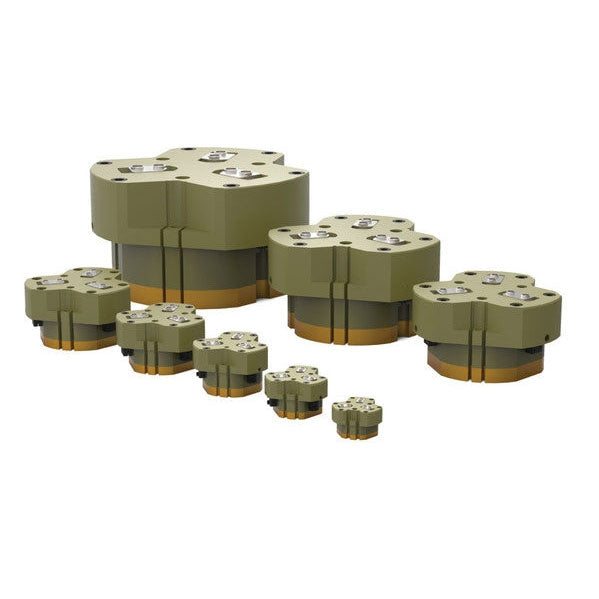

DESTACO RTH-6M-L 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-RTH-6M-L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO RTH-6M-L 3 JAW PARALLEL GRIPPERMulti-Purpose, Powerful Parallel Grippers for Heavy Parts - RTH Series. The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It is shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RTH-6M-L 3 JAW PARALLEL GRIPPER
The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.
- The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
- Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
- The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
- Versatile gripper with a wide range of options and accessories
Imperial or Metric Product | Metric |
Grip Force (N) | 6,629 |
Grip Force (lbsf) | 1,490 |
Grip Force with Spring Assist (N) | 8,971 |
Grip Force with Spring Assist (lb) | 2,017 |
Stroke (mm) | 32.0 |
Stroke (in) | 1.260 |
Cylinder Bore (mm) | 120 |
Cylinder Bore (in) | 4.72 |
Pressure Range Without Springs | 30-100 psi |
Pressure Range With Springs | 55-100 psi |
Max Vacuum (in. Hg) | 8 |
Max Vacuum (mm Hg) | 20 |
Temp Range Standard | -35° to 80°C (-30° to 180°F) |
Temp Range Viton | -30° to 150°C (-20° to 300°F) |
Actuation (Open/Closed) (Sec) | 0 |
Accuracy (±mm) | 0.080 |
Repeatability (±mm) | 0.040 |
Maximum Finger Length (mm) | 254 |
Maximum Finger Length (in) | 10.00 |
Product Type | 3 Jaw Parallel |
Special Feature | Heavy Duty |
Spring Assist | Optional |
Stroke per Jaw (mm) | 16.00 |
Stroke per Jaw (in) | 0.63 |
Weight (kg) | 7.90 |
Weight (lb) | 17.40 |
Product Series Description | 3-Jaw Parallel Gripper |
Number of Jaws | 3 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | Parallel Grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |
