Brand: DESTACO

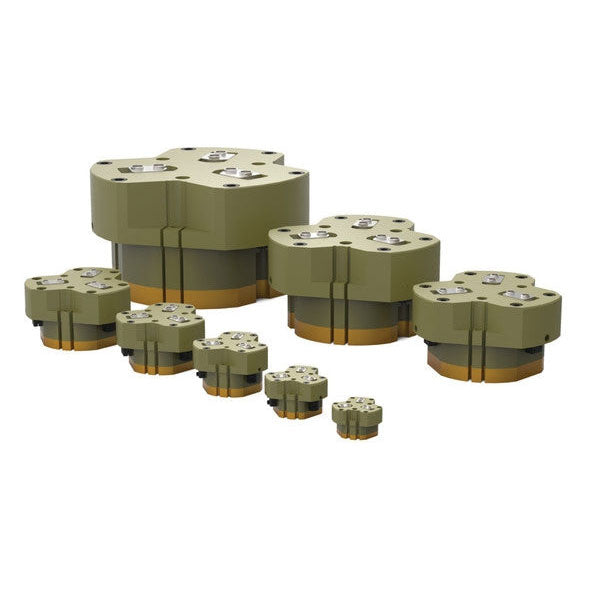

DESTACO RTH-4M-L 3 JAW PARALLEL GRIPPER

SKU: DE-STA-CO-RTH-4M-L
MPN: RTH-4M-L

$2,013.13
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the power of the DESTACO RTH-4M-L 3 JAW PARALLEL GRIPPER! Whether you're loading or unloading, this gripper's 3 concentric jaws and shielded design will ensure a smooth operation, free from any interruptions caused by chips or other particles. With two stroke lengths to choose from, you can easily handle round parts with precision and repeatability. This compact yet robust gripper is perfect for confined spaces, offering a strong grip force and long finger designs. Plus, with a variety of options and accessories available, the possibilities are endless. See for yourself the impressive metric grip force of 2,366 N (532 lbsf) and 2,967 N (667 lb) with spring assist, stroke length of 20.0 mm (0.780 in), and cylinder bore of 72 mm (2.83 in).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RTH-4M-L 3 JAW PARALLEL GRIPPER

The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.

The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
Versatile gripper with a wide range of options and accessories

Product	Metric
Grip Force (N)	2,366
Grip Force (lbsf)	532
Grip Force with Spring Assist (N)	2,967
Grip Force with Spring Assist (lb)	667
Stroke (mm)	20.0
Stroke (in)	0.780
Cylinder Bore (mm)	72
Cylinder Bore (in)	2.83
Pressure Range Without Springs	30-100 psi
Pressure Range With Springs	45-100 psi
Max Vacuum (in. Hg)	8
Max Vacuum (mm Hg)	20
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	0
Accuracy (±mm)	0.060
Repeatability (±mm)	0.030
Repeatability (±in)	0.001
Maximum Finger Length (mm)	178
Maximum Finger Length (in)	7.00
Product Type	3 Jaw Parallel
Special Feature	Heavy Duty
Spring Assist	Optional
Stroke per Jaw (mm)	10.00
Stroke per Jaw (in)	0.40
Weight (kg)	1.95
Weight (lb)	4.30
Product Series Description	3-Jaw Parallel Gripper
Number of Jaws	3
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
