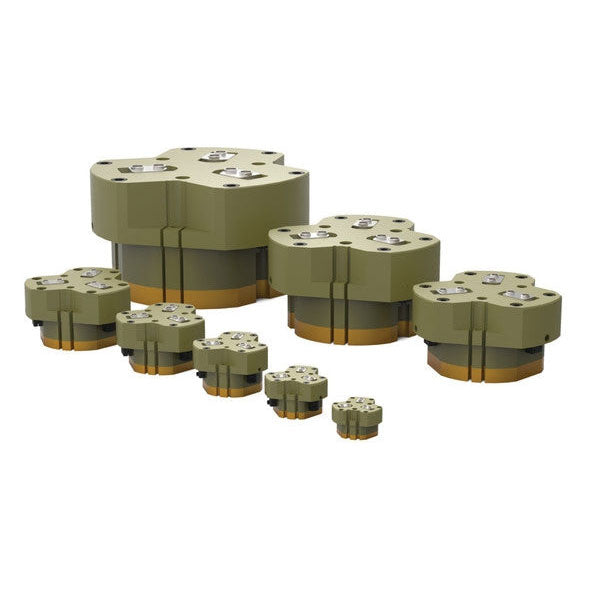

DESTACO RTH-4M 3 JAW PARALLEL GRIPPER

Brand: DESTACO

DESTACO RTH-4M 3 JAW PARALLEL GRIPPER

SKU: DE-STA-CO-RTH-4M
MPN: RTH-4M

  • $1,973.41
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO RTH-4M 3 JAW PARALLEL GRIPPER, RTH Series 3-Jaw Parallel Gripper by DESTACO, is perfect for loading and unloading machines. Its protected design repels debris and maintains the internal drive mechanism. Each gripper comes in two different stroke lengths, and its three concentric jaws and precise repeatability make it easy to load and unload round parts. This compact, sturdy, and powerful gripper can be used even in tight spaces, thanks to its long strokes and strong grip. The large jaw surface area and enclosed bottom case design allow for longer finger designs, and with a variety of options and accessories, this versatile gripper is perfect for any application. The product offers a metric grip force of 3,644N and a grip force with spring assist of 4,562N for maximum efficiency.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO RTH-4M 3 JAW PARALLEL GRIPPER

The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.

  • The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
  • Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
  • The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
  • Versatile gripper with a wide range of options and accessories
Product Metric
Grip Force (N) 3,644
Grip Force (lbsf) 819
Grip Force with Spring Assist (N) 4,562
Grip Force with Spring Assist (lb) 1,026
Stroke (mm) 10.0
Stroke (in) 0.390
Cylinder Bore (mm) 72
Cylinder Bore (in) 2.83
Pressure Range Without Springs 30-100 psi
Pressure Range With Springs 45-100 psi
Max Vacuum (in. Hg) 8
Max Vacuum (mm Hg) 20
Temp Range Standard -35° to 80°C (-30° to 180°F)
Temp Range Viton -30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec) 0
Accuracy (±mm) 0.060
Repeatability (±mm) 0.030
Repeatability (±in) 0.001
Maximum Finger Length (mm) 178
Maximum Finger Length (in) 7.00
Product Type 3 Jaw Parallel
Special Feature Heavy Duty
Spring Assist Optional
Stroke per Jaw (mm) 5.00
Stroke per Jaw (in) 0.20
Weight (kg) 1.95
Weight (lb) 4.30
Product Series Description 3-Jaw Parallel Gripper
Number of Jaws 3
Product Function Gripping
Product Family Grippers
Product Group Parallel Grippers
Brand Robohand
Distributor Group Robohand Gripping Solutions
