Brand: DESTACO

DESTACO RTH-2M-L 3 JAW PARALLEL GRIPPER

SKU: DE-STA-CO-RTH-2M-L
MPN: RTH-2M-L

$1,593.62
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the DESTACO RTH-2M-L 3 JAW PARALLEL GRIPPER! This powerful gripper is perfect for machine load/unload applications and features a shielded design that keeps out chips and particulates. With two available stroke lengths, it ensures accurate loading and unloading of round parts. Its compact, robust design allows it to be used in confined spaces and its high grip force makes it even more effective. From its versatile options and accessories to its impressive grip force, this gripper truly delivers. Get yours now and experience the benefits for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

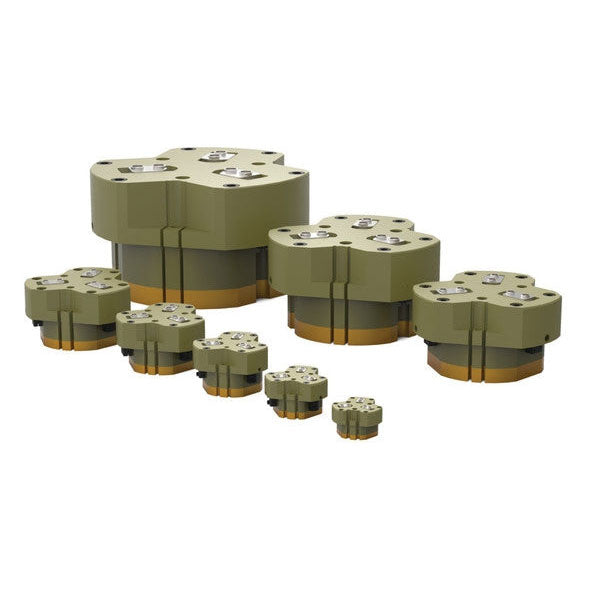

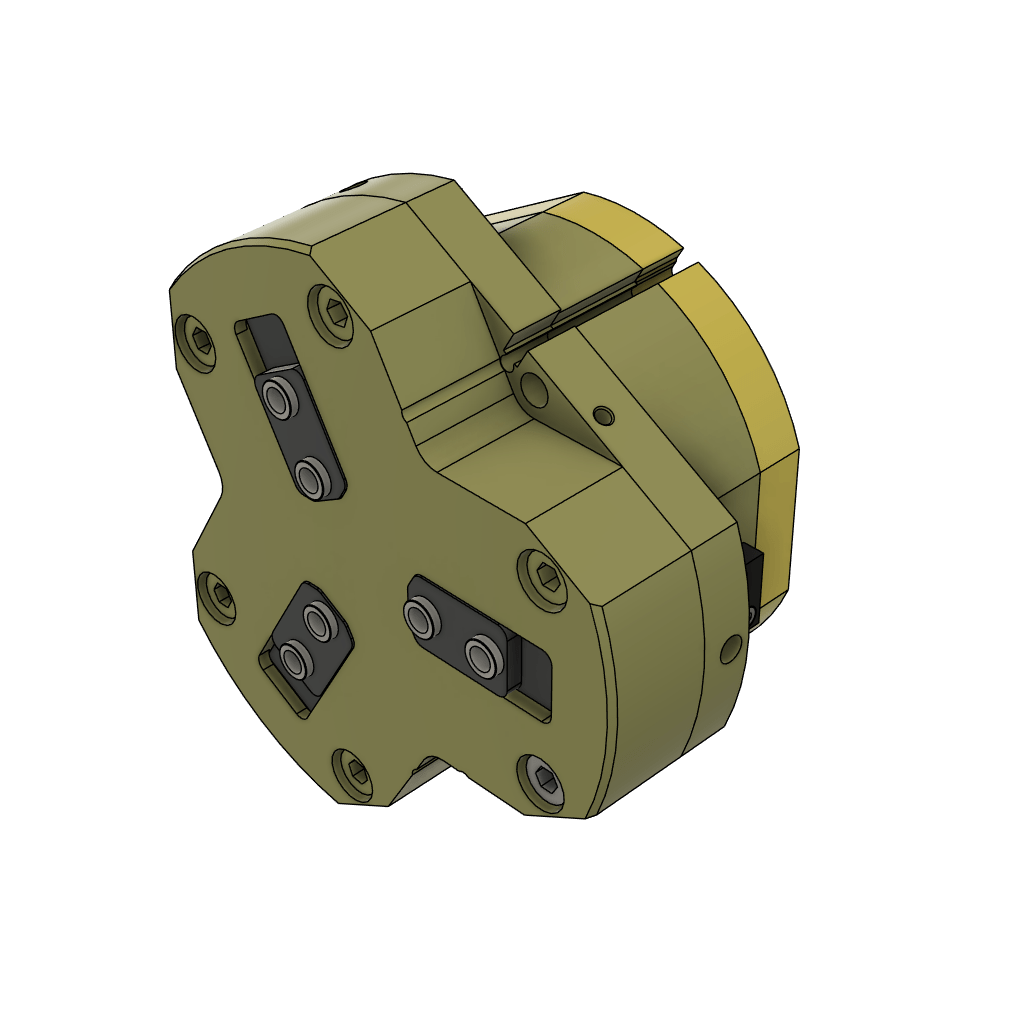

DESTACO RTH-2M-L 3 JAW PARALLEL GRIPPER

The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.

The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
Versatile gripper with a wide range of options and accessories

Product	Metric
Grip Force (N)	812
Grip Force (lbsf)	183
Grip Force with Spring Assist (N)	979
Grip Force with Spring Assist (lb)	220
Stroke (mm)	12.0
Stroke (in)	0.470
Cylinder Bore (mm)	43
Cylinder Bore (in)	1.69
Pressure Range Without Springs	30-100 psi
Pressure Range With Springs	60-100 psi
Max Vacuum (in. Hg)	8
Max Vacuum (mm Hg)	20
Temp Range Standard	-35° to 80°C (-30° to 180°F)
Temp Range Viton	-30° to 150°C (-20° to 300°F)
Actuation (Open/Closed) (Sec)	0
Accuracy (±mm)	0.040
Repeatability (±mm)	0.020
Repeatability (±in)	0.001
Maximum Finger Length (mm)	90
Maximum Finger Length (in)	3.50
Product Type	3 Jaw Parallel
Special Feature	Heavy Duty
Spring Assist	Optional
Stroke per Jaw (mm)	6.00
Stroke per Jaw (in)	0.24
Weight (kg)	0.53
Weight (lb)	1.20
Product Series Description	3-Jaw Parallel Gripper
Number of Jaws	3
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
