Brand: DESTACO

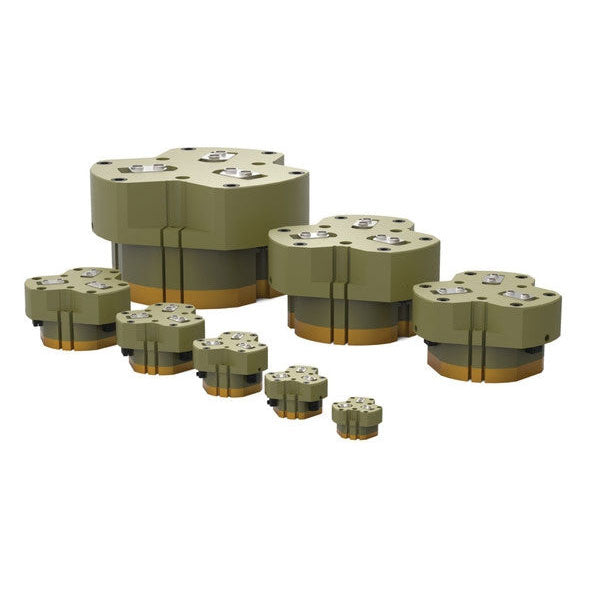

DESTACO RTH-1M 3 JAW PARALLEL GRIPPER
SKU: DE-STA-CO-RTH-1M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO RTH-1M 3 JAW PARALLEL GRIPPER is perfect for machine load/unload tasks. Its guarded construction keeps debris and other particles away from the internal drive mechanism. Available in two stroke lengths, this gripper features three concentric jaws and exceptional repeatability, making it effortless to precisely load and unload circular parts. With its compact size, durable design, and impressive grip strength, it can easily operate in tight spaces and offers a long reach. Additionally, the large surface area of the jaws and enclosed bottom case design allow for extended finger configurations. This versatile gripper has a wide array of options and accessories, providing the perfect solution for your needs. Product Metric Grip Force (N) 682, Grip Force (lbsf) 153, Grip Force with Spring Assist (N) 889, Grip Force with Spring Assist (lb) 200, Stroke (mm) 4.0, Stroke (in) 0.160, Cylinder Bore (mm) 32.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RTH-1M 3 JAW PARALLEL GRIPPER
The RTH Series 3-Jaw Parallel Gripper is ideal for machine load/unload applications. It''s shielded design repels chips and other particulate from the internal drive mechanism. Each gripper is avaliable in two stroke lengths.
- The 3 concentric jaws and excellent repeatability make it easier to accurately load and unload round parts
- Compact, robust and powerful gripper can be used in confined spaces, combining long strokes with a high grip force
- The large surface area of the jaws coupled with the encapsulated bottom case design allows for long finger designs
- Versatile gripper with a wide range of options and accessories
| Product | Metric |
| Grip Force (N) | 682 |
| Grip Force (lbsf) | 153 |
| Grip Force with Spring Assist (N) | 889 |
| Grip Force with Spring Assist (lb) | 200 |
| Stroke (mm) | 4.0 |
| Stroke (in) | 0.160 |
| Cylinder Bore (mm) | 32 |
| Cylinder Bore (in) | 1.26 |
| Pressure Range Without Springs | 30-100 psi |
| Pressure Range With Springs | 60-100 psi |
| Max Vacuum (in. Hg) | 8 |
| Max Vacuum (mm Hg) | 20 |
| Temp Range Standard | -35° to 80°C (-30° to 180°F) |
| Temp Range Viton | -30° to 150°C (-20° to 300°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (±mm) | 0.040 |
| Repeatability (±mm) | 0.020 |
| Repeatability (±in) | 0.001 |
| Maximum Finger Length (mm) | 80 |
| Maximum Finger Length (in) | 3.15 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Heavy Duty |
| Spring Assist | Optional |
| Stroke per Jaw (mm) | 2.00 |
| Stroke per Jaw (in) | 0.08 |
| Weight (kg) | 0.25 |
| Weight (lb) | 0.60 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
