Brand: DESTACO
DESTACO RPLC-4M 2 JAW CLEAN ROOM PARALLEL GRIPPER
SKU: DE-STA-CO-RPLC-4M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the incredible DESTACO RPLC-4M 2 JAW CLEAN ROOM PARALLEL GRIPPER, designed for clean room applications. These 2-jaw grippers offer precise movements and come in 4 sizes with strokes ranging from 0.25" to 1" and grip forces between 26 lbs to 36 lbs. Experience the patented dual V roller bearing system and choose between synchronous or non-synchronous operation. This gripper is built for perfection and efficiency, with a lightweight and compact design. With a maximum grip force of 160N and a stroke of 25.4mm, this gripper is the ultimate tool for your clean room needs. Don't miss out on this opportunity - get your DESTACO RPLC-4M 2 JAW CLEAN ROOM PARALLEL GRIPPER today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPLC-4M 2 JAW CLEAN ROOM PARALLEL GRIPPER

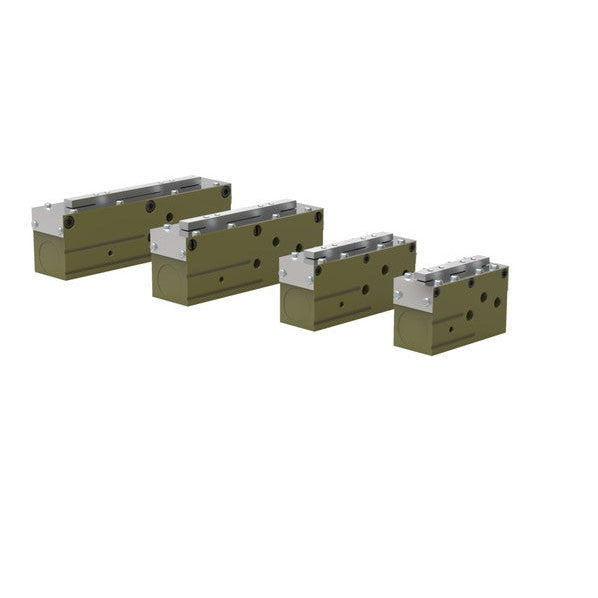

Designed for clean room applications, these 2 jaw precision parallel grippers are offered in 4 sizes with strokes from 0.25" [ 6.4mm] to 1" [25.4mm] and grip forces from 26 lbs [116N] to 36 lbs [160N]. Available in synchronous & non-synchronous operation
- Designed for Clean Room Applications
- Lightweight, Compact
- Patented Dual V Roller Bearing System
| Product | Metric |
| Grip Force (N) | 160 |
| Grip Force (lbsf) | 36 |
| Stroke (mm) | 25.4 |
| Stroke (in) | 1.000 |
| Cylinder Bore (mm) | 12.7 |
| Cylinder Bore (in) | 0.5 |
| Pressure Range (psi) | 5-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (‚±mm) | 0.050 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 127 |
| Maximum Finger Length (in) | 5.00 |
| Product Type | 2 Jaw Parallel |
| Clean Room with Scavange | 10 |
| Special Feature | Clean Room |
| Jaw Operation | Non-Synchronous Available |
| Weight (kg) | 0.17 |
| Weight (lb) | 0.37 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
