Brand: DESTACO

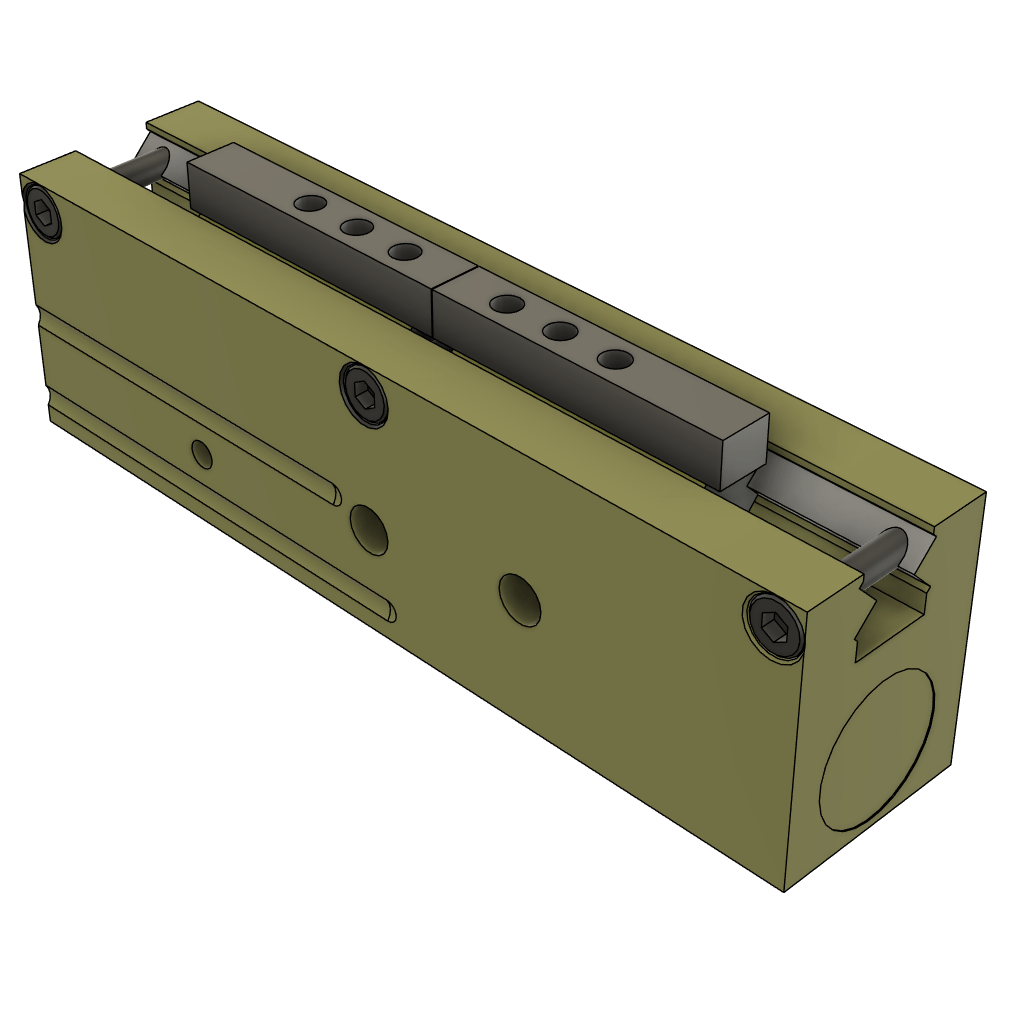

DESTACO RPL-4 2 JAW LOW PROFILE PARALLEL GRIPPER

SKU: DE-STA-CO-RPL-4
MPN: RPL-4

$1,097.17
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the incredible value of the DESTACO RPL-4 2 JAW LOW PROFILE PARALLEL GRIPPER, perfect for handling small parts with precision and ease. Available in 4 sizes with stroke lengths ranging from 0.25 inches to 1 inch, and grip forces from 26 lbs to 36 lbs. Experience the powerful grip and lightweight, compact design, enhanced by patented dual "V" roller bearing support for unbeatable accuracy and repeatability. This gripper operates in both synchronous and non-synchronous modes, making it a versatile choice for any application. Trust the Imperial Grip Force of 160 N (36 lbsf) and a cylinder bore of 12.7 mm (0.5 inches) to provide maximum performance in a pressure range of 5-100 psi.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO RPL-4 2 JAW LOW PROFILE PARALLEL GRIPPER

This 2 jaw precision parallel gripper is ideal for small parts handling. It is offered in 4 sizes with a strokes from 0.25" [ 6.4mm] to 1" [25.4mm] and grip forces from 26 lbs [116N] to 36 lbs [160N]. Available in synchronous & non-synchronous operation

Lightweight, Compact
Patented Dual "V" Roller Bearing Support"
Excellent accuracy and repeatability

Product	Imperial
Grip Force (N)	160
Grip Force (lbsf)	36
Stroke (mm)	25.4
Stroke (in)	1.000
Cylinder Bore (mm)	12.7
Cylinder Bore (in)	0.5
Pressure Range (psi)	5-100 psi
Temp Range Standard	-35‚° to 80‚°C (-30‚° to 180‚°F)
Temp Range Viton	-30‚° to 120‚°C (-20‚° to 250‚°F)
Actuation (Open/Closed) (Sec)	0
Accuracy (‚±in)	0.002
Repeatability (‚±mm)	0.030
Repeatability (‚±in)	0.001
Maximum Finger Length (mm)	127
Maximum Finger Length (in)	5.00
Product Type	2 Jaw Parallel
Special Feature	Low pressure application
Jaw Operation	Non-Synchronous Available
Weight (kg)	0.17
Weight (lb)	0.37
Product Series Description	2-Jaw Parallel Gripper
Number of Jaws	2
Product Function	Gripping
Product Family	Grippers
Product Group	Parallel Grippers
Brand	Robohand
Distributor Group	Robohand Gripping Solutions
