Brand: DESTACO

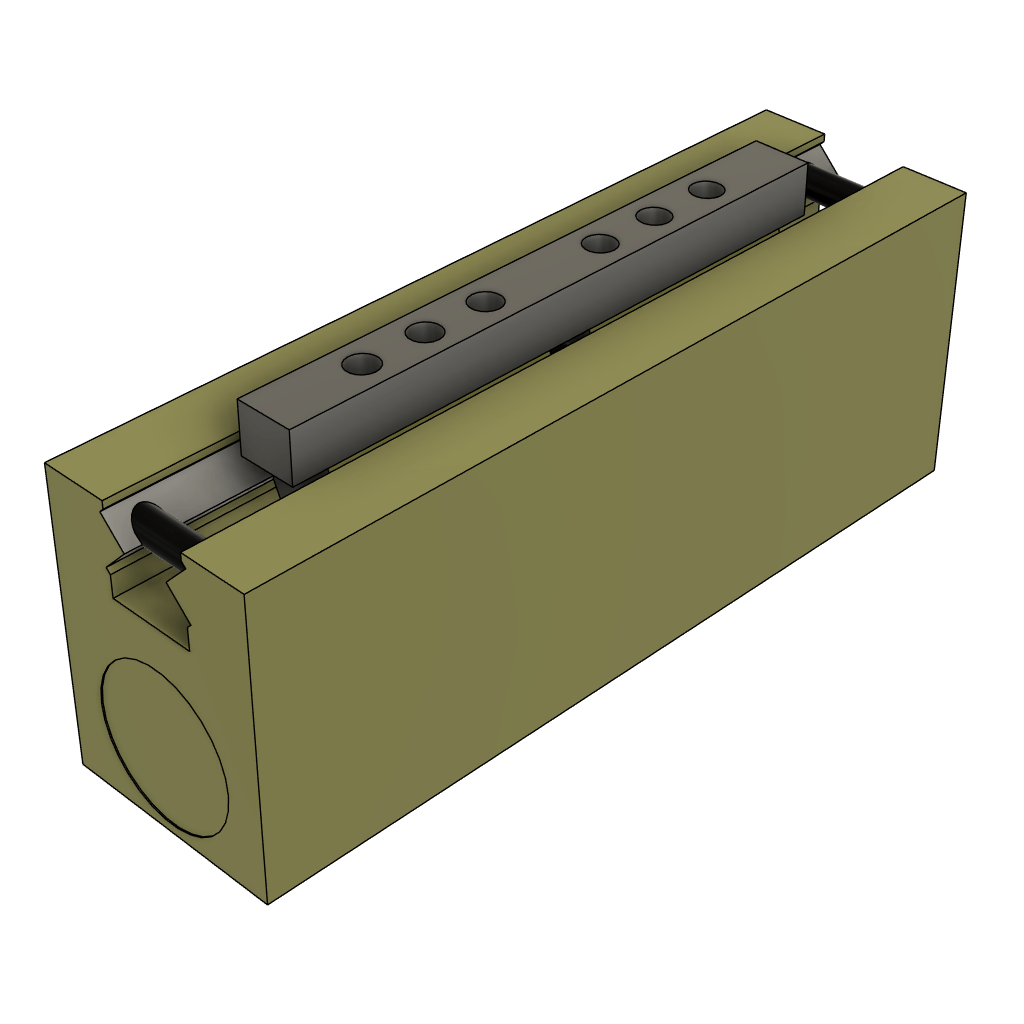

DESTACO RPL-3 2 JAW LOW PROFILE PARALLEL GRIPPER
SKU: DE-STA-CO-RPL-3
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience precision and power with the DESTACO RPL-3 2 JAW LOW PROFILE PARALLEL GRIPPER. Ideal for handling small parts, this gripper comes in 4 sizes with stroke options ranging from 0.25" to 1" and grip forces between 26 lbs to 36 lbs. Its synchronous and non-synchronous operation, lightweight design, and patented Dual "V" Roller Bearing Support provide excellent accuracy and repeatability. With a maximum grip force of 160N (36 lbs) and a stroke of 19.1mm (0.750 inches), this gripper is a must-have for any industrial application.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPL-3 2 JAW LOW PROFILE PARALLEL GRIPPER
This 2 jaw precision parallel gripper is ideal for small parts handling. It is offered in 4 sizes with a strokes from 0.25" [ 6.4mm] to 1" [25.4mm] and grip forces from 26 lbs [116N] to 36 lbs [160N]. Available in synchronous & non-synchronous operation
- Lightweight, Compact
- Patented Dual "V" Roller Bearing Support"
- Excellent accuracy and repeatability
| Product | Imperial |
| Grip Force (N) | 160 |
| Grip Force (lbsf) | 36 |
| Stroke (mm) | 19.1 |
| Stroke (in) | 0.750 |
| Cylinder Bore (mm) | 12.7 |
| Cylinder Bore (in) | 0.5 |
| Pressure Range (psi) | 5-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (‚±in) | 0.002 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 102 |
| Maximum Finger Length (in) | 4.00 |
| Product Type | 2 Jaw Parallel |
| Special Feature | Low pressure application |
| Jaw Operation | Non-Synchronous Available |
| Weight (kg) | 0.15 |
| Weight (lb) | 0.33 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
