Brand: DESTACO

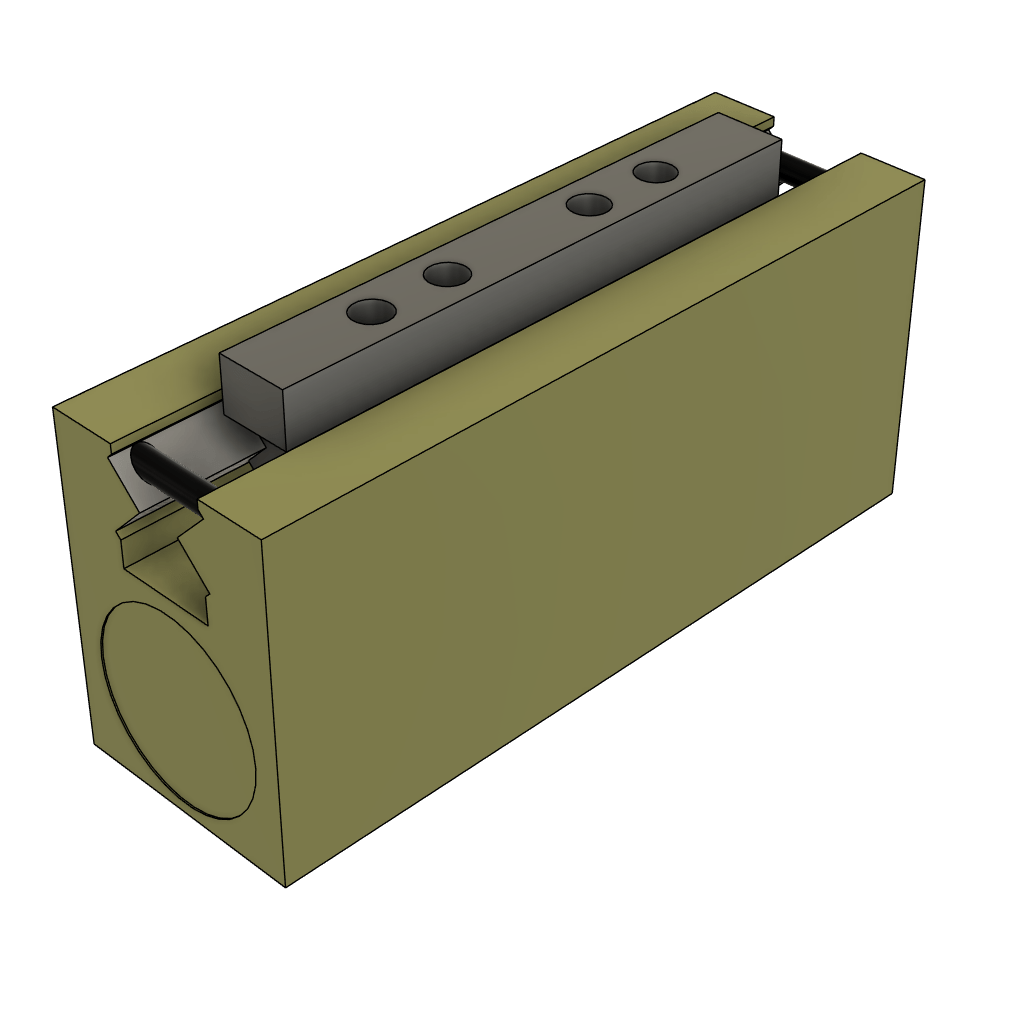

DESTACO RPL-2 2 JAW LOW PROFILE PARALLEL GRIPPER
SKU: DE-STA-CO-RPL-2
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Improve your small parts handling with the revolutionary DESTACO RPL-2 2 JAW LOW PROFILE PARALLEL GRIPPER. Experience precision and accuracy like never before with 4 different sizes, stroke options ranging from 0.25" to 1", and grip forces up to 36 lbs. Whether you prefer synchronous or non-synchronous operation, this gripper has you covered. Its patented dual "V" roller bearing support ensures lightweight and compact design, while maintaining excellent accuracy and repeatability. Don't miss out on the opportunity to enhance your production process with the DESTACO RPL-2 2 JAW LOW PROFILE PARALLEL GRIPPER!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPL-2 2 JAW LOW PROFILE PARALLEL GRIPPER
This 2 jaw precision parallel gripper is ideal for small parts handling. It is offered in 4 sizes with a strokes from 0.25" [ 6.4mm] to 1" [25.4mm] and grip forces from 26 lbs [116N] to 36 lbs [160N]. Available in synchronous & non-synchronous operation
- Lightweight, Compact
- Patented Dual "V" Roller Bearing Support"
- Excellent accuracy and repeatability
| Product | Imperial |
| Grip Force (N) | 116 |
| Grip Force (lbsf) | 26 |
| Stroke (mm) | 12.7 |
| Stroke (in) | 0.500 |
| Cylinder Bore (mm) | 11.1252 |
| Cylinder Bore (in) | 0.438 |
| Pressure Range (psi) | 5-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 120‚°C (-20‚° to 250‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (‚±in) | 0.002 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 2 Jaw Parallel |
| Special Feature | Low pressure application |
| Jaw Operation | Non-Synchronous Available |
| Weight (kg) | 0.09 |
| Weight (lb) | 0.20 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
