Brand: DESTACO

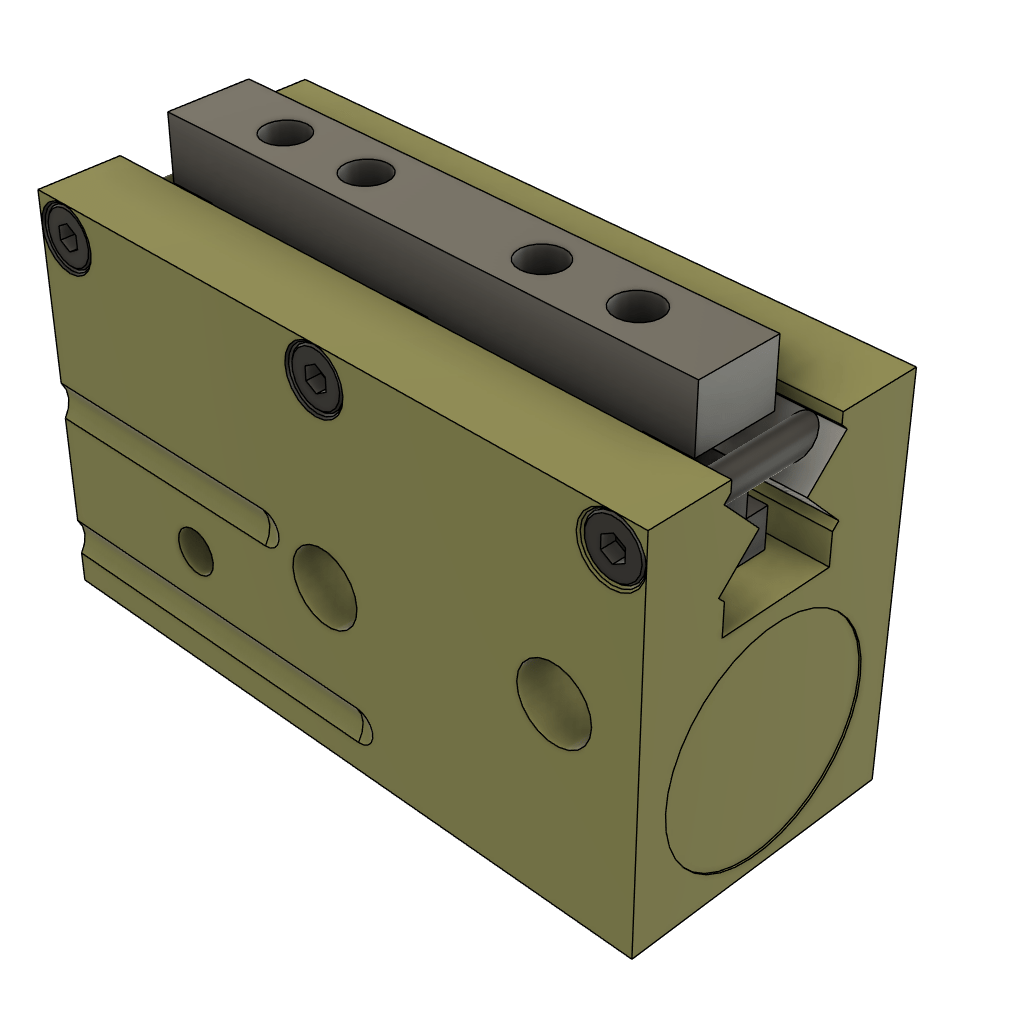

DESTACO ROBOHAND RPL-1 2 JAW LOW PROFILE PARALLEL GRIPPER
SKU: DE-STA-CO-RPL-1
MPN:
In-Stock: 2
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Unlock the full potential of your small part handling with the DESTACO RPL-1 2 Jaw Low Profile Parallel Gripper. This precision gripper comes in 4 sizes with strokes ranging from 0.25" to 1", and grip forces from 26 lbs to 36 lbs. With both synchronous and non-synchronous operation options, as well as a patented dual "V" roller bearing support, this gripper offers exceptional accuracy and repeatability. Don't settle for less, elevate your productivity and precision with DESTACO.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPL-1 2 JAW LOW PROFILE PARALLEL GRIPPER
This 2 jaw precision parallel gripper is ideal for small parts handling. It is offered in 4 sizes with a strokes from 0.25" [ 6.4mm] to 1" [25.4mm] and grip forces from 26 lbs [116N] to 36 lbs [160N]. Available in synchronous & non-synchronous operation
- Lightweight, Compact
- Patented Dual "V" Roller Bearing Support"
- Excellent accuracy and repeatability
| Product | Imperial |
| Grip Force (N) | 116 |
| Grip Force (lbsf) | 26 |
| Stroke (mm) | 6.4 |
| Stroke (in) | 0.250 |
| Cylinder Bore (mm) | 11.1252 |
| Cylinder Bore (in) | 0.438 |
| Pressure Range (psi) | 5-100 psi |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 150‚°C (-20‚° to 300‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 2 Jaw Parallel |
| Special Feature | Low pressure application |
| Jaw Operation | Non-Synchronous Available |
| Weight (kg) | 0.07 |
| Weight (lb) | 0.16 |
| Product Series Description | 2-Jaw Parallel Gripper |
| Number of Jaws | 2 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
