Brand: DESTACO

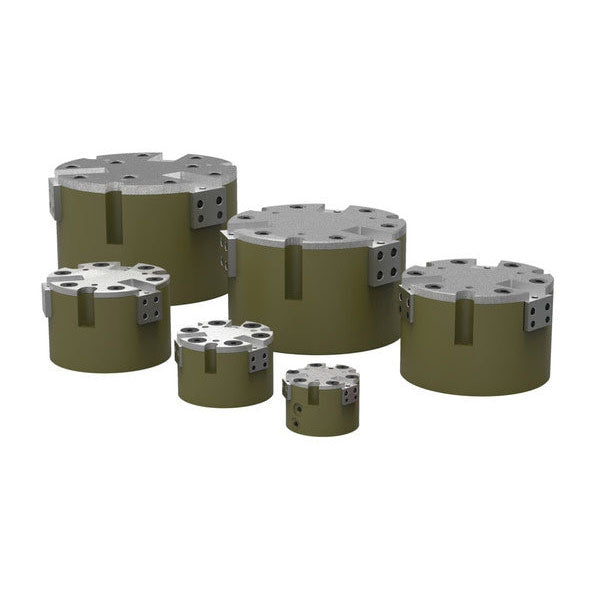

DESTACO RPC-368M 3 JAW TRIPLE WEDGE PARALLEL GRIPPER
SKU: DE-STA-CO-RPC-368M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO RPC-368M 3 JAW TRIPLE WEDGE PARALLEL GRIPPERSelf-Centering Parallel Grippers Heavy Parts & Lathe Applications - RPC Series. The RPC Series is a 3-jaw self-centering gripper with a very high grip force
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPC-368M 3 JAW TRIPLE WEDGE PARALLEL GRIPPER
The RPC Series is a 3-jaw self-centering gripper with a very high grip force
Imperial or Metric Product | Metric |
Grip Force (N) | 13,345 |
Grip Force (lbsf) | 3,000 |
Stroke (mm) | 34.9 |
Stroke (in) | 1.380 |
Cylinder Bore (mm) | 133 |
Cylinder Bore (in) | 5.25 |
Pressure Range (psi) | 20-100 |
Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
Temp Range Viton | -30‚° to 150‚°C (-20‚° to 300‚°F) |
Actuation (Open/Closed) (Sec) | 1 |
Accuracy (‚±mm) | 0.050 |
Repeatability (‚±mm) | 0.030 |
Repeatability (‚±in) | 0.001 |
Maximum Finger Length (mm) | 178 |
Maximum Finger Length (in) | 7.00 |
Product Type | 3 Jaw Parallel |
Special Feature | Precision |
Stroke per Jaw (mm) | 17.45 |
Stroke per Jaw (in) | 0.69 |
Weight (kg) | 7.27 |
Weight (lb) | 16.06 |
Product Series Description | 3-Jaw Parallel Gripper |
Number of Jaws | 3 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | Parallel Grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |
