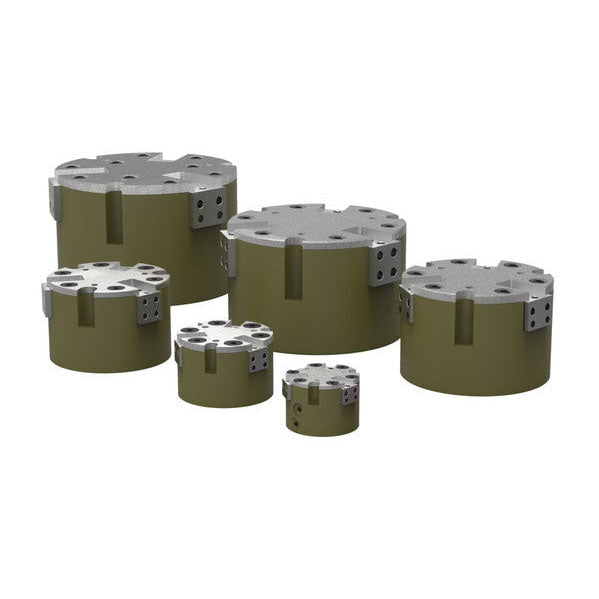

DESTACO RPC-331M 3 JAW TRIPLE WEDGE PARALLEL GRIPPER
SKU: DE-STA-CO-RPC-331M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO RPC-331M, the ultimate 3-jaw self-centering gripper with superior grip force. With a grip force up to 3,336N (750lbsf) and a stroke of 15.7mm (0.620in), this parallel gripper is designed for maximum performance. The 70mm (2.75in) cylinder bore and pressure range of 20-100psi make it the perfect tool for any task. Upgrade to the RPC Series today and experience its unparalleled gripping power!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO RPC-331M 3 JAW TRIPLE WEDGE PARALLEL GRIPPER
The RPC Series is a 3-jaw self-centering gripper with a very high grip force
| Product | Metric |
| Grip Force (N) | 3,336 |
| Grip Force (lbsf) | 750 |
| Stroke (mm) | 15.7 |
| Stroke (in) | 0.620 |
| Cylinder Bore (mm) | 70 |
| Cylinder Bore (in) | 2.75 |
| Pressure Range (psi) | 20-100 |
| Temp Range Standard | -35‚° to 80‚°C (-30‚° to 180‚°F) |
| Temp Range Viton | -30‚° to 150‚°C (-20‚° to 300‚°F) |
| Actuation (Open/Closed) (Sec) | 0 |
| Accuracy (‚±mm) | 0.050 |
| Repeatability (‚±mm) | 0.030 |
| Repeatability (‚±in) | 0.001 |
| Maximum Finger Length (mm) | 76 |
| Maximum Finger Length (in) | 3.00 |
| Product Type | 3 Jaw Parallel |
| Special Feature | Precision |
| Stroke per Jaw (mm) | 7.85 |
| Stroke per Jaw (in) | 0.31 |
| Weight (kg) | 1.36 |
| Weight (lb) | 3.08 |
| Product Series Description | 3-Jaw Parallel Gripper |
| Number of Jaws | 3 |
| Product Function | Gripping |
| Product Family | Grippers |
| Product Group | Parallel Grippers |
| Brand | Robohand |
| Distributor Group | Robohand Gripping Solutions |
